Sensors Speed Sensors Variable Reluctance + ATEX (VR)

Variable Reluctance & ATEX Explosion-Proof Sensors

Variable reluctance speed sensors are like coils or solenoids wrapped around a magnet and pole piece. The VR sensor generates a voltage when a gear tooth moves near it. The rotating target’s frequency can then be used to determine the speed of the application. Factors like the diameter of the target wheel and the dimensions of each tooth affect the calculation. So, our VR ATEX-certified explosion-proof sensors are a simple yet effective way to measure speed in a variety of applications.

request a quote shop vr speed sensors
have custom requirements?

Let’s Build Something Together.
We Offer Custom Design for Our Sensors.

more about custom sensors

Variable Reluctance + ATEX (VR) Sensors

Filter by:

imagePart #resistanceinductanceoutput typethread per inchAdd to quote

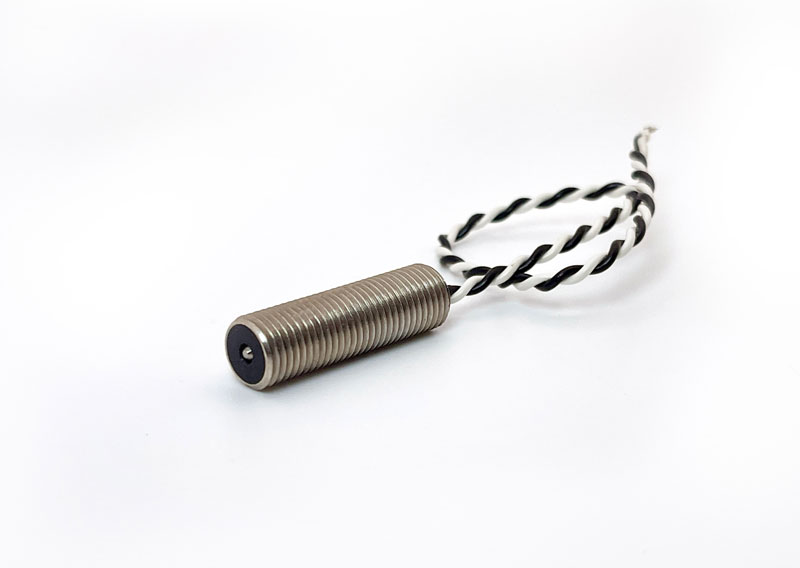

401005-10401005-10 Learn More670 +/- 134 ohm174 mHAnalog24 Add

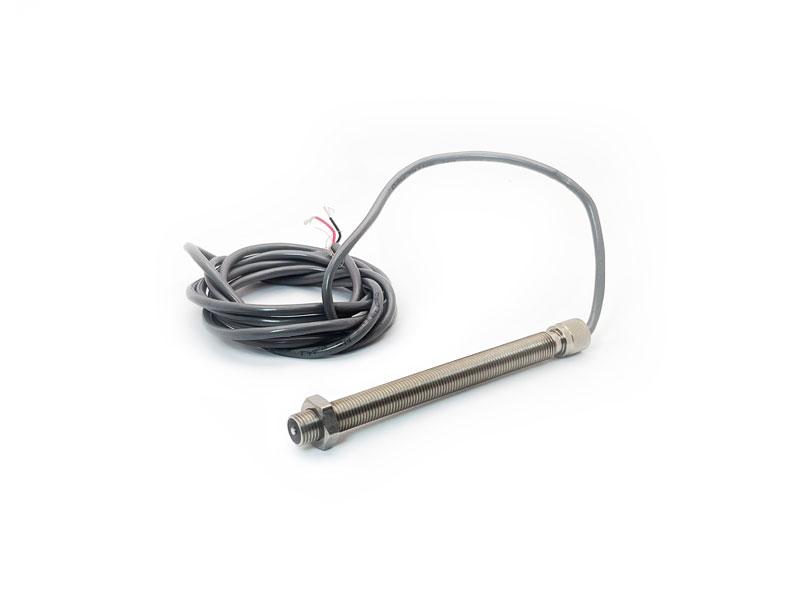

401005-40401005-40 Learn More800 +/- 160 ohm140 mHAnalog24 Add

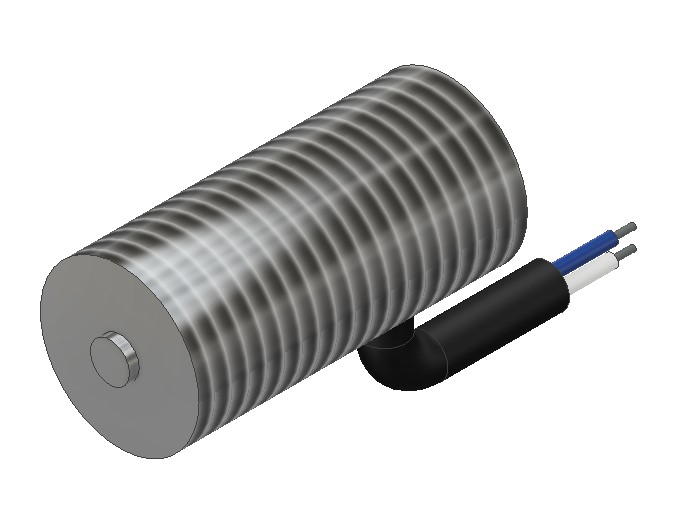

401005-70401005-70 Learn More67 +/- 12 ohm12.95 +/- 2.15 mHAnalog24 Add

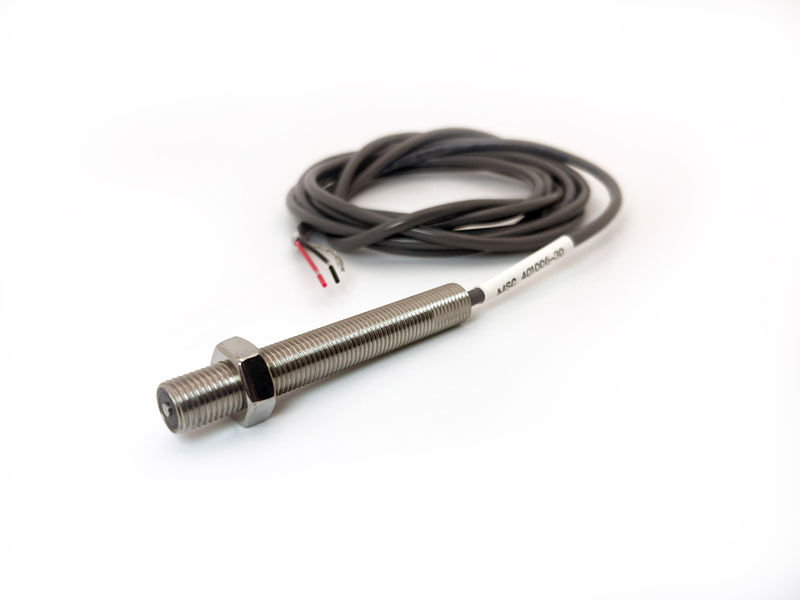

401006-30401006-30 Learn More800 +/- 160 ohm-Analog24 Add

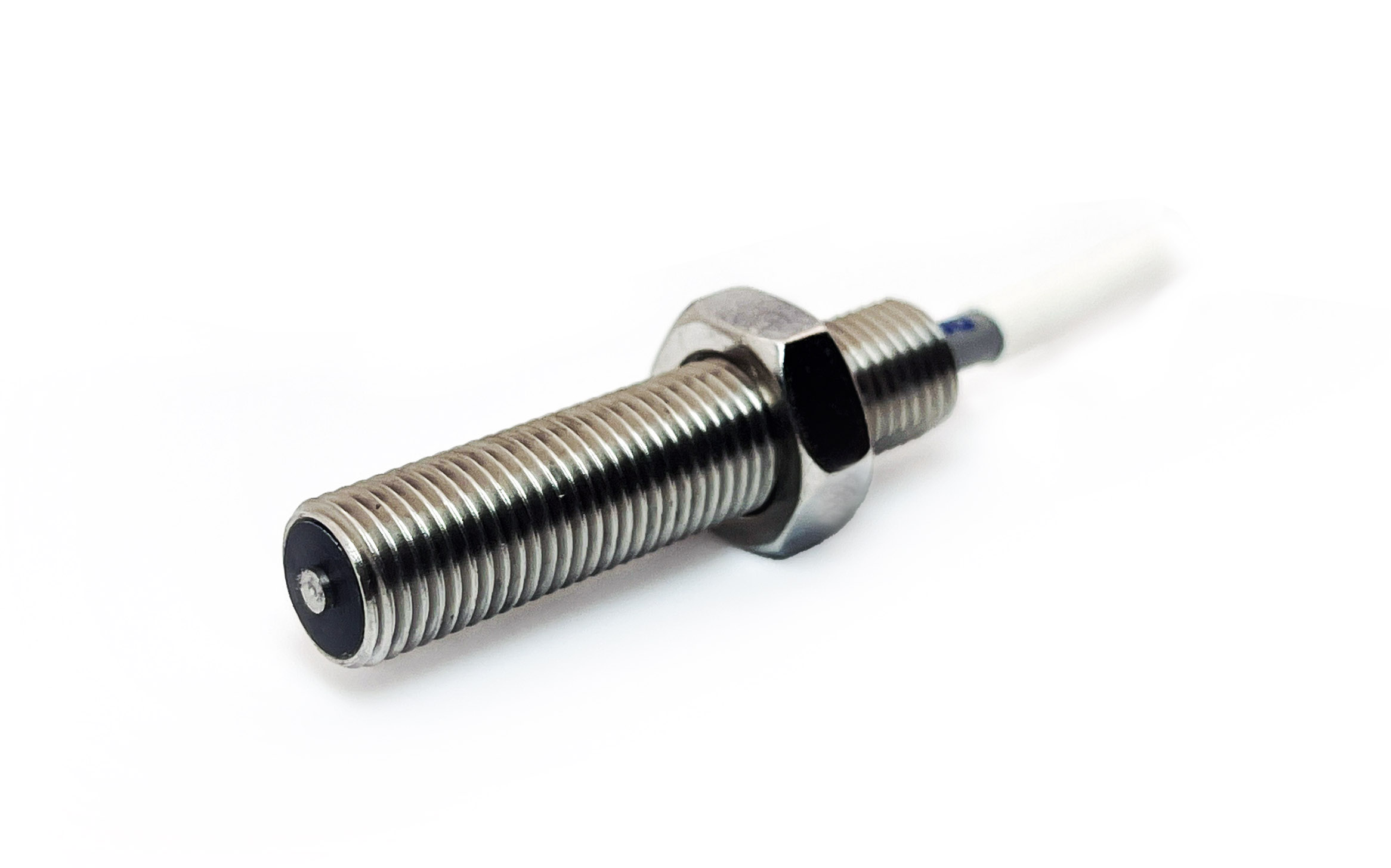

401006-40401006-40 Learn More800 +/- 160 ohm-Analog24 Add

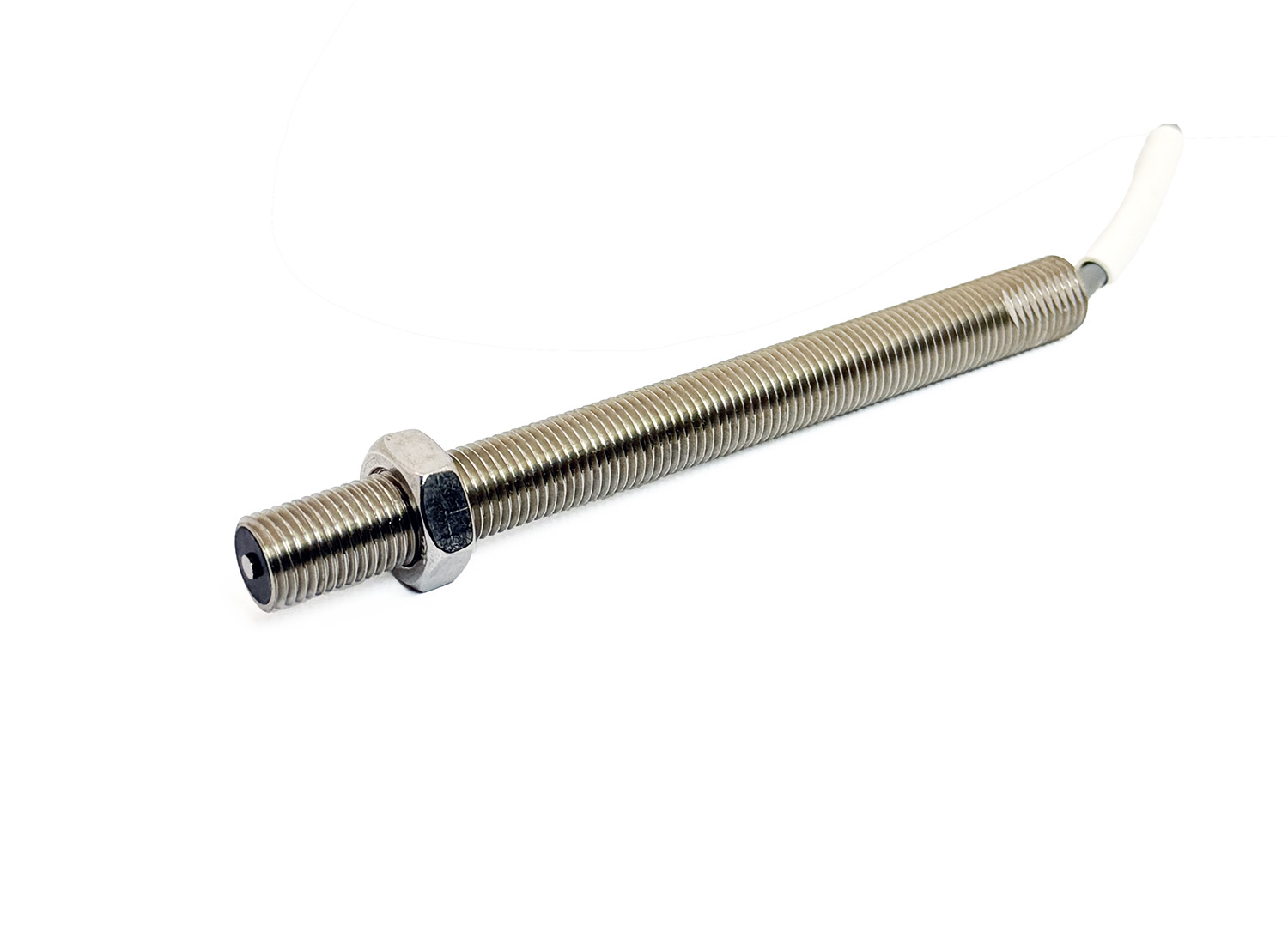

401006-50401006-50 Learn More800 +/- 160 ohm-Analog24 Add

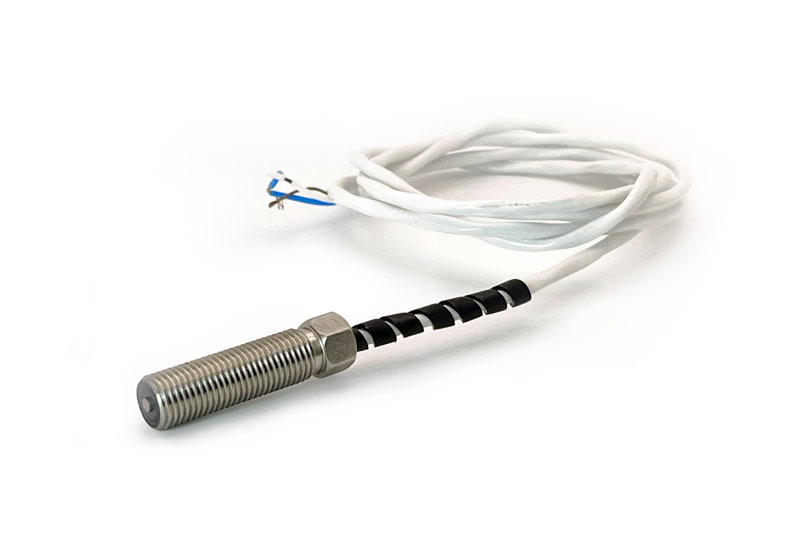

401006-60401006-60 Learn More66 +/- 13 ohm14.5 mHAnalog24 Add
Placeholder image401006-80 Learn More1000 +/- 200 ohm275 mHAnalog24 Add

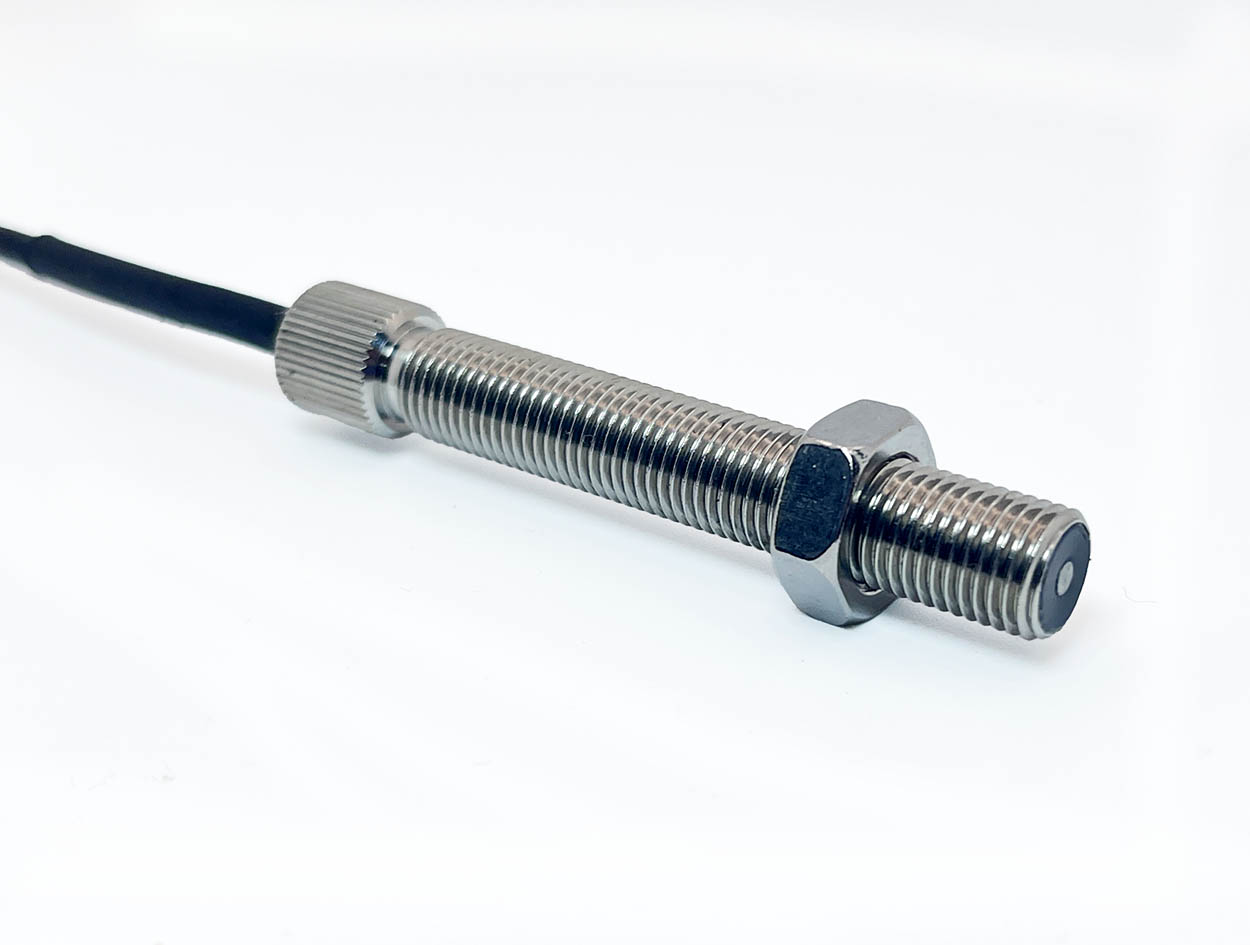

401007-00401007-00 Learn More1000 +/- 200 ohm174 mHAnalog24 Add

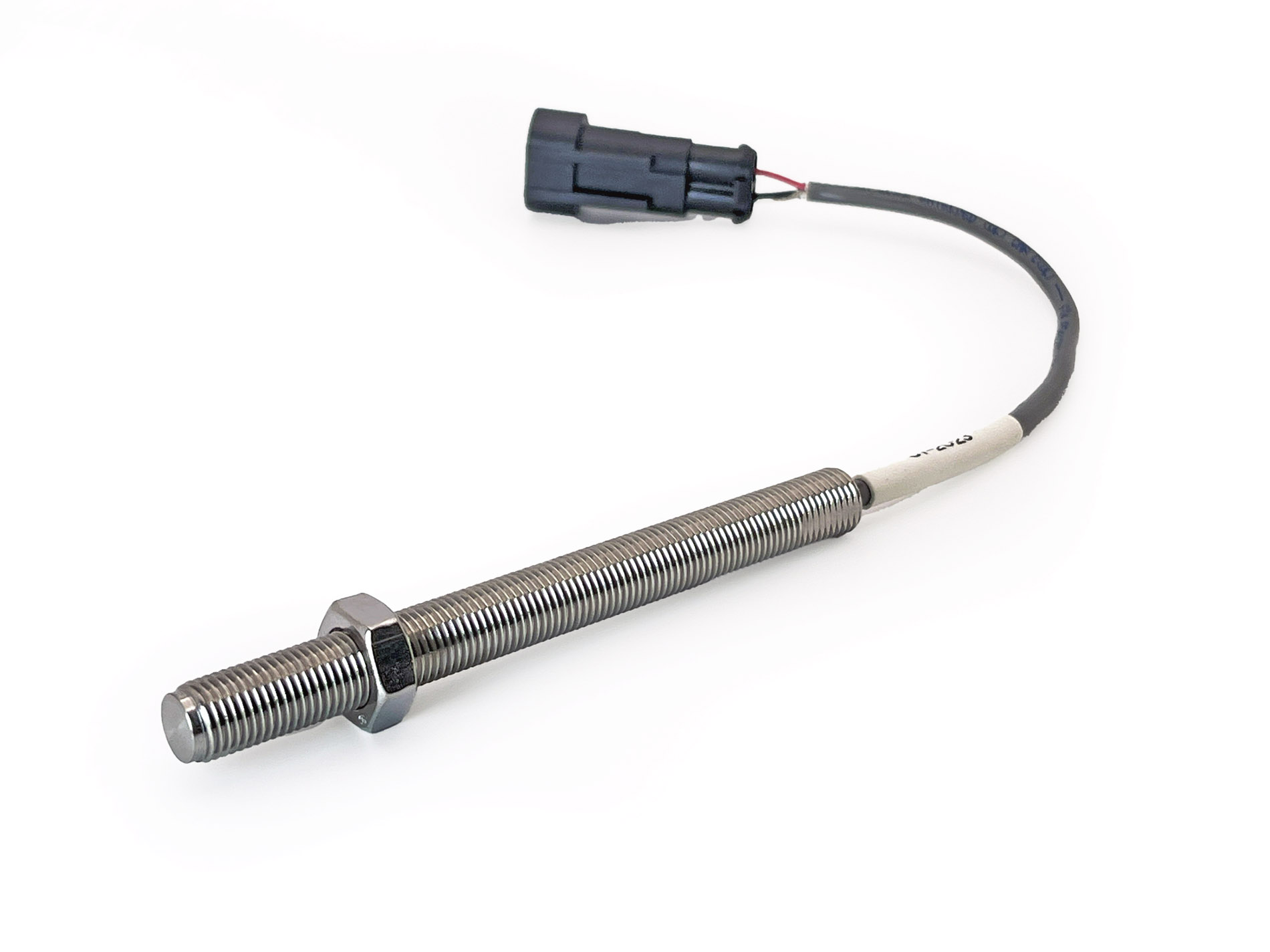

401007-10401007-10 Learn More800 +/- 160 ohm-Analog24 Add
401007-20401007-20 Learn More650 +/- 130 ohm130 +/- 10 mHAnalog24 Add
Placeholder image401009-00 Learn More1600 +/- 160 ohm900 mHAnalog- Add
401012-20401012-20 Learn More200 +/- 40 ohm17.4 mHAnalog- Add

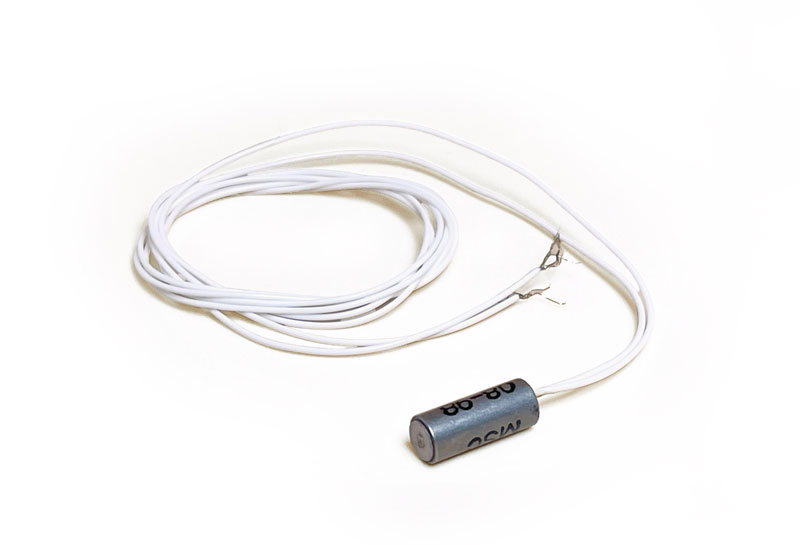

401012-40401012-40 Learn More140 +/- 25 ohm14 +/- 4 mHAnalog- Add
Placeholder image401012-50 Learn More240 +/- 48 ohm27 +/- 5.4 mHAnalog24 Add
Placeholder image401013-00 Learn More650 +/- 100 ohm-Analog- Add
401013-20401013-20 Learn More650 +/- 100 ohm-Analog- Add
401013-30401013-30 Learn More650 +/- 100 ohm-Analog- Add
Placeholder image401013-40 Learn More1200 ohm450 mHAnalog- Add
Placeholder image401013-50 Learn More125 ohm27 +/- 4 mHAnalog20 Add
401013-60401013-60 Learn More106 +/- 10.6 ohm42 +/- 4.2 mHAnalog24 Add
Placeholder image401014-40 Learn More610 +/- 60 ohm130 +/- 26 mHAnalog- Add
401016-10401016-10 Learn More670 +/- 33.5 ohm174 mHAnalog24 Add
401016-20401016-20 Learn More670 +/- 33.5 ohm174 mHAnalog24 Add
Placeholder image401016-40 Learn More800 +/- 160 ohm-Analog24 Add
401016-50401016-50 Learn More800 +/- 160 ohm-Analog24 Add
Placeholder image401016-70 Learn More800 +/- 160 ohm-Analog24 Add

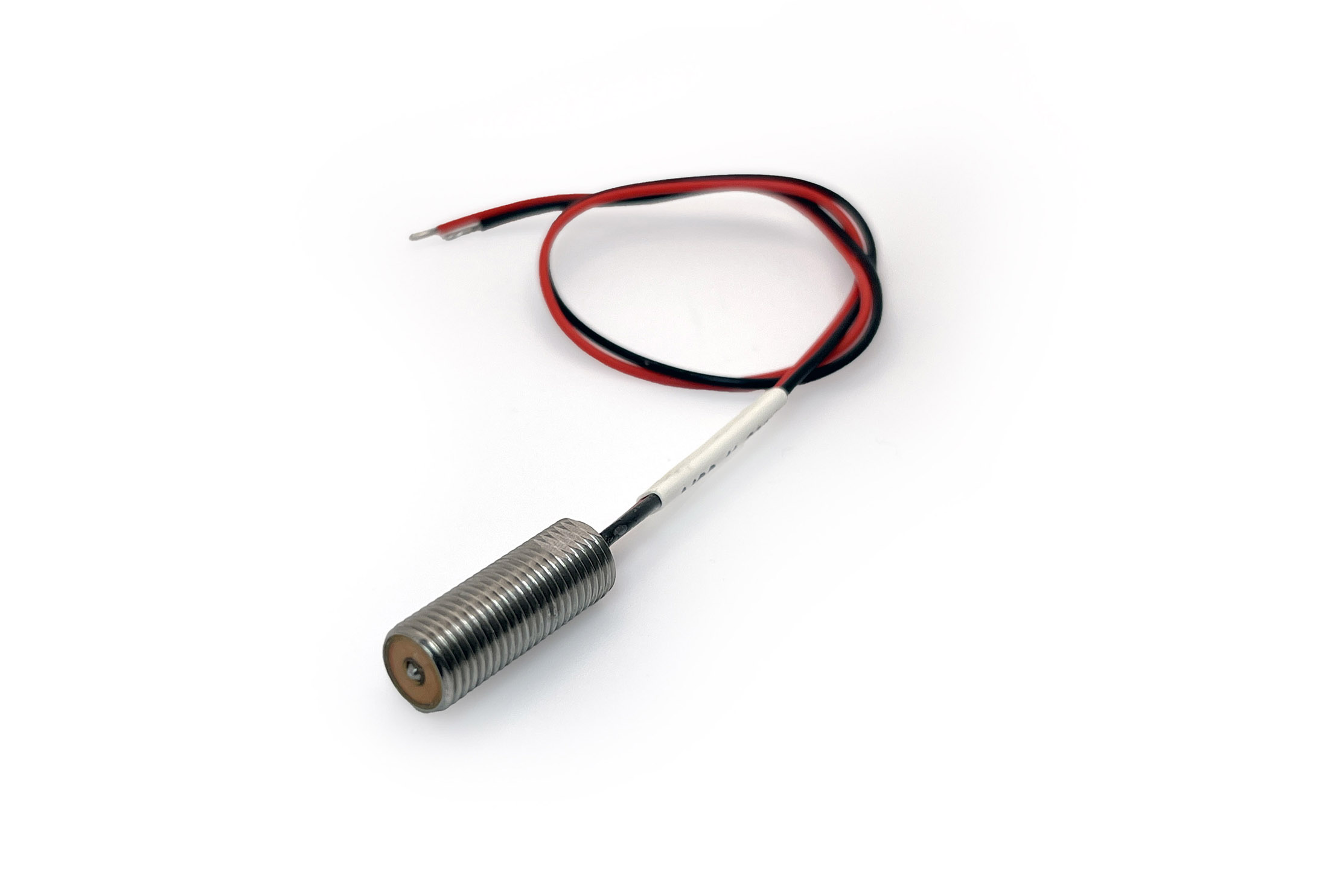

401017-00401017-00 Learn More480 +/- 96 ohm94 mHAnalog24 Add
401017-10401017-10 Learn More650 +/- 130 ohm100 +/- 20 mHAnalog24 Add
401017-50401017-50 Learn More670 +/- 134 ohm174 mHAnalog24 Add

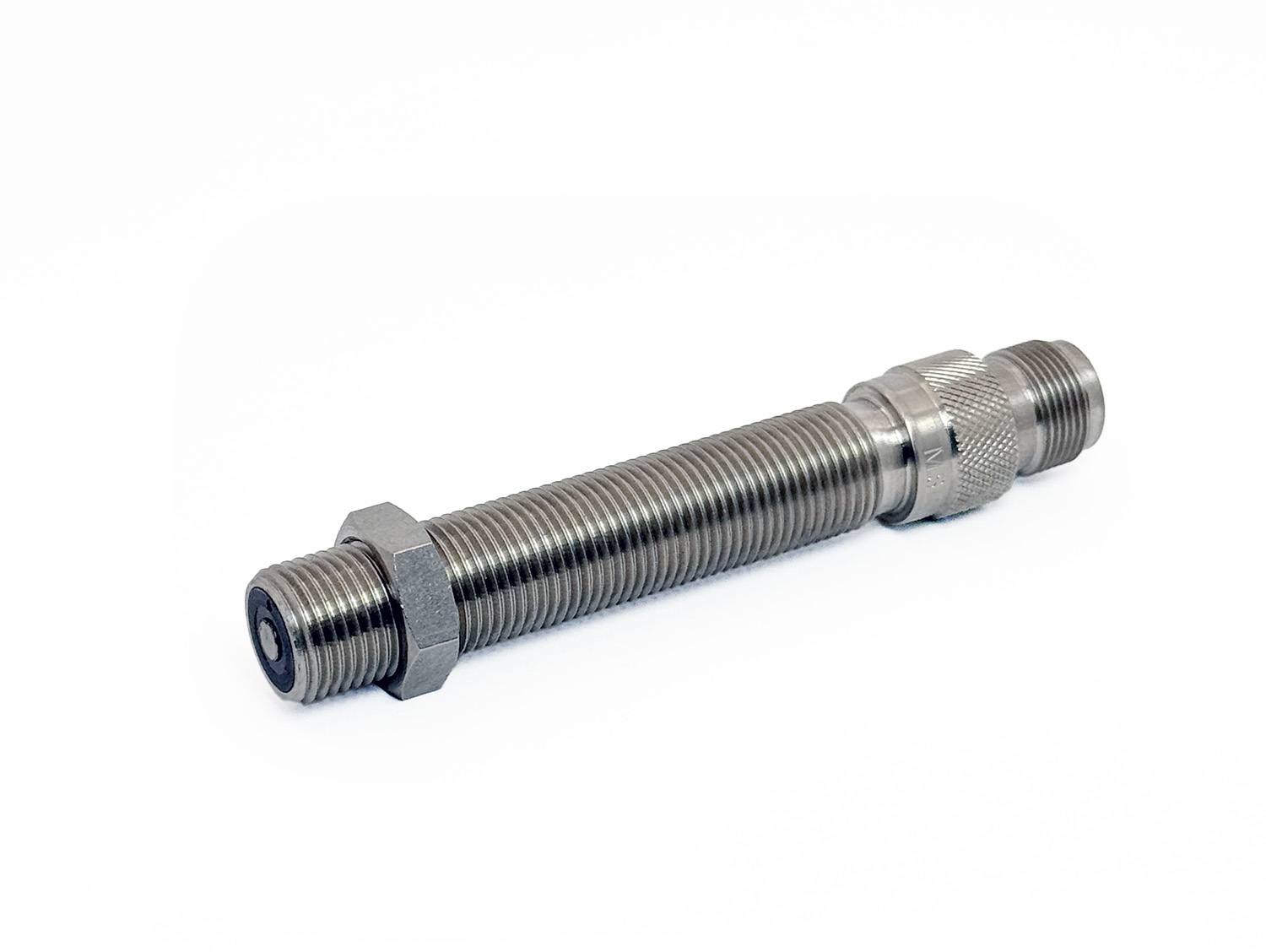

401017-60401017-60 Learn More800 +/- 160 ohm-Analog24 Add
Placeholder image401017-90 Learn More1000 ohm250 mHAnalog24 Add
401020-20401020-20 Learn More650 +/- 100 ohm-Analog- Add
Placeholder image401020-30 Learn More565 ohm235 mHAnalog- Add
401021-20401021-20 Learn More650 +/- 130 ohm130 mHAnalog- Add
401021-30401021-30 Learn More625 +/- 75 ohm120 mHAnalog- Add
Placeholder image401021-60 Learn More650 +/- 100 ohm-Analog- Add
Placeholder image401021-70 Learn More650 +/- 100 ohm-Analog- Add

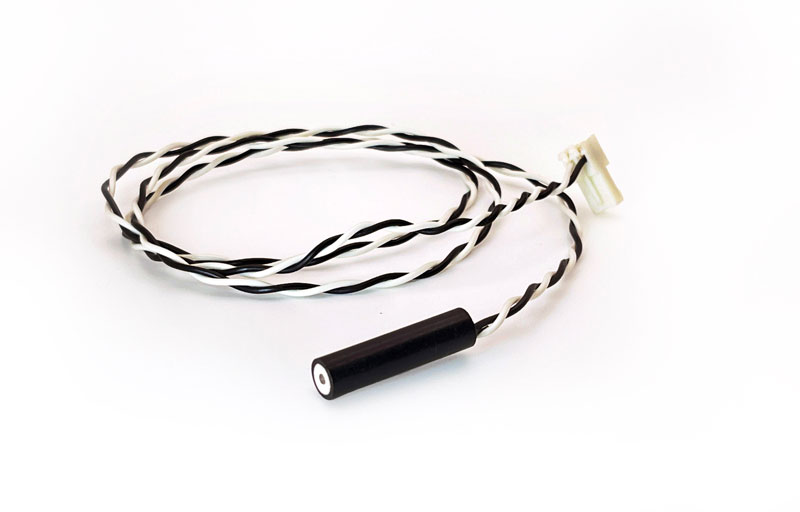

401022-30401022-30 Learn More125 +/- 25 ohm7.5 mHAnalog- Add
Placeholder image401022-70 Learn More650 +/- 100 ohm-Analog- Add
Placeholder image401023-20 Learn More285 +/- 57 ohm7.5 mHAnalog- Add
Placeholder image401023-30 Learn More650 +/- 100 ohm-Analog- Add
Placeholder image401023-60 Learn More140 ohm15.5 mHAnalog24 Add

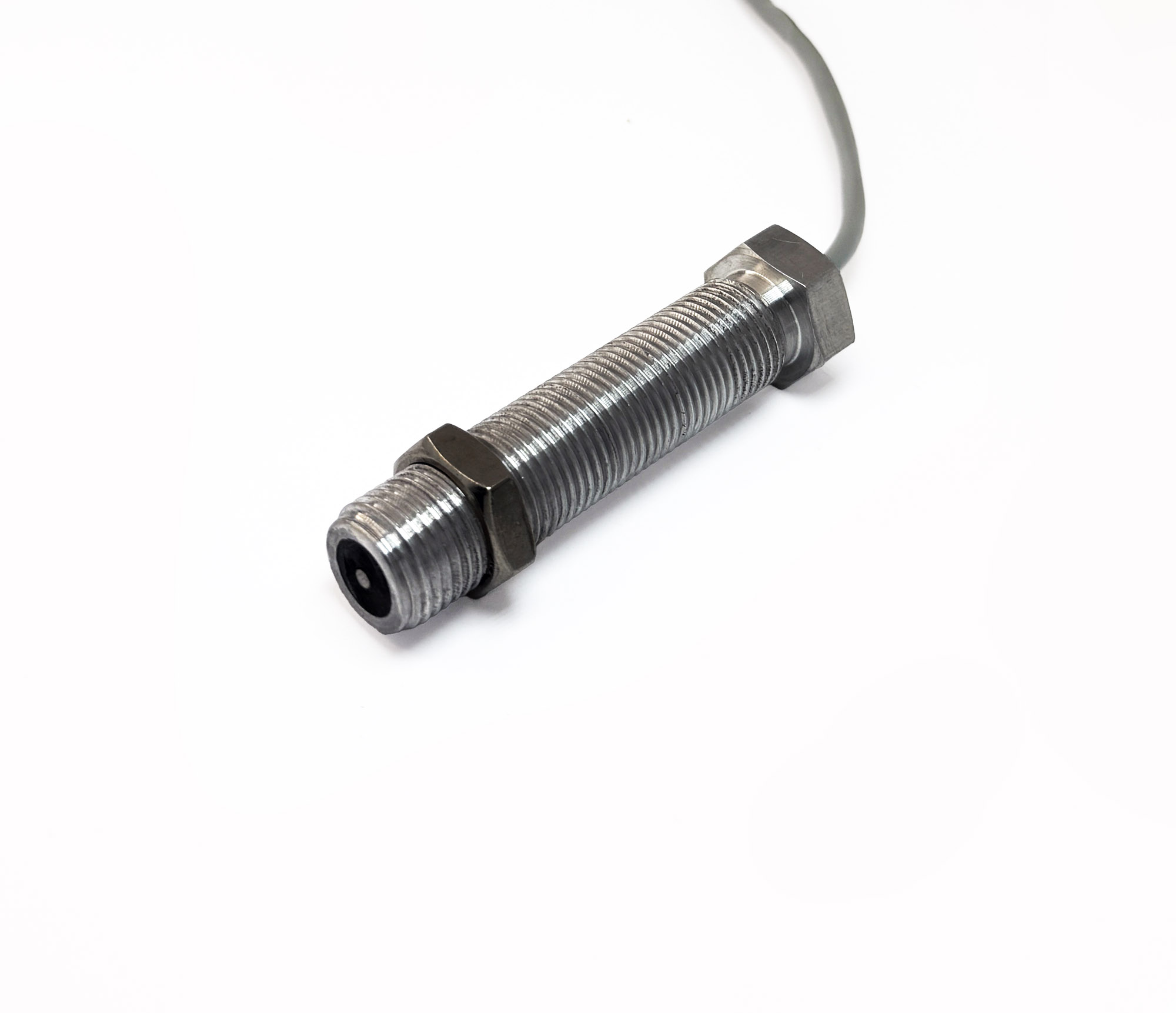

401026-00401026-00 Learn More1600 +/- 320 ohm330 +/- 66 mHAnalog- Add
401026-10401026-10 Learn More180 +/- 36 ohm60 mHAnalog- Add
Placeholder image401026-20 Learn More62.5 +/- 22.5 ohm25 mHAnalog- Add
Placeholder image401026-30 Learn More180 +/- 36 ohm60 mHAnalog- Add
Placeholder image401026-50 Learn More180 +/- 36 ohm60 mHAnalog- Add
Placeholder image401026-60 Learn More1200 +/- 240 ohm420 mHAnalog- Add
Placeholder image401026-70 Learn More1600 +/- 320 ohm330 +/- 66 mHAnalog17 Add
Placeholder image401027-20 Learn More62.5 +/- 22.5 ohm25 mHAnalog18 Add
401027-30401027-30 Learn More180 +/- 36 ohm60 mHAnalog18 Add

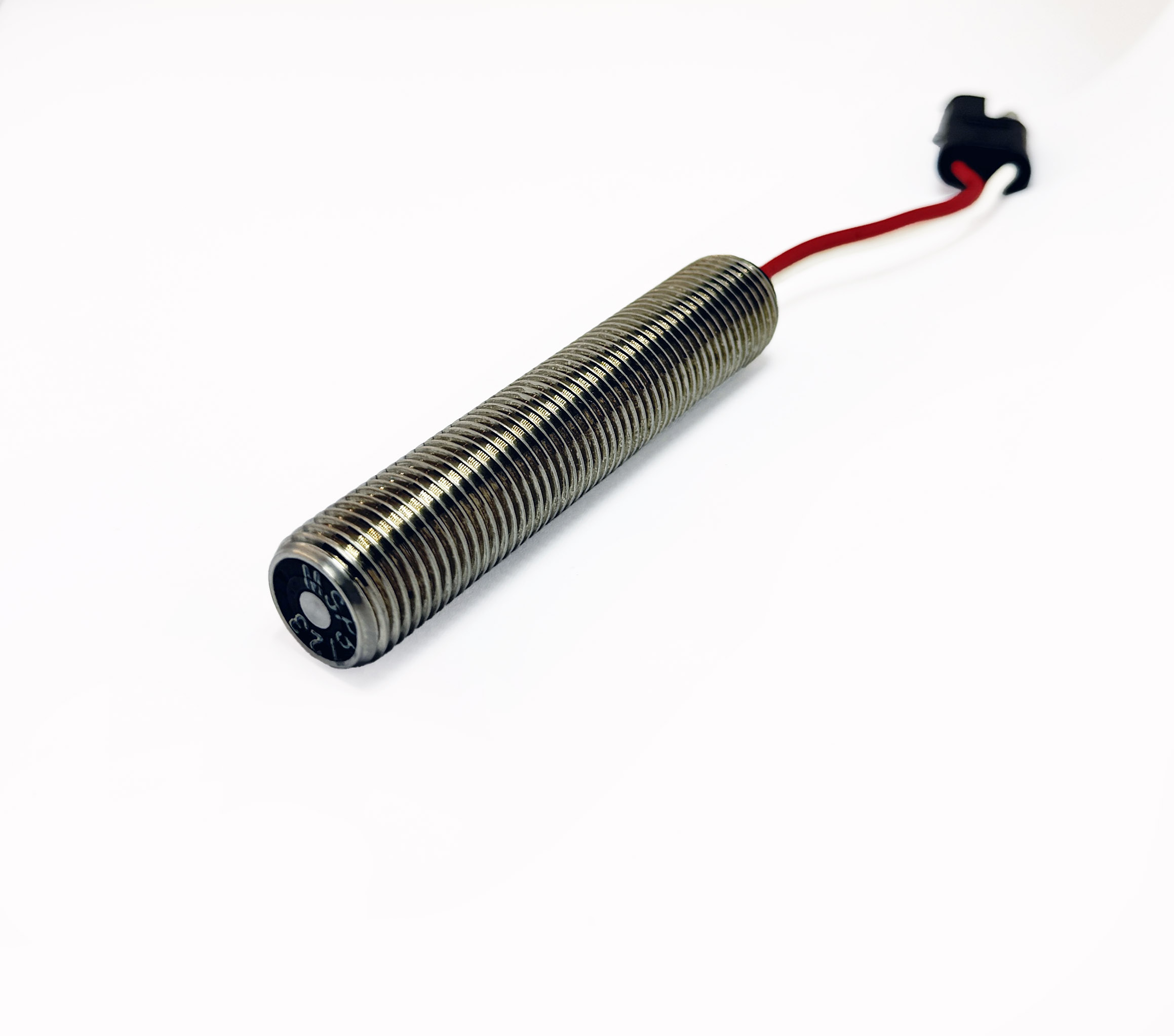

401027-50401027-50 Learn More180 +/- 36 ohm60 mHAnalog17 Add
401027-60401027-60 Learn More1000 +/- 100 ohm450 mHAnalog18 Add
401027-70401027-70 Learn More180 +/- 36 ohm60 mHAnalog18 Add

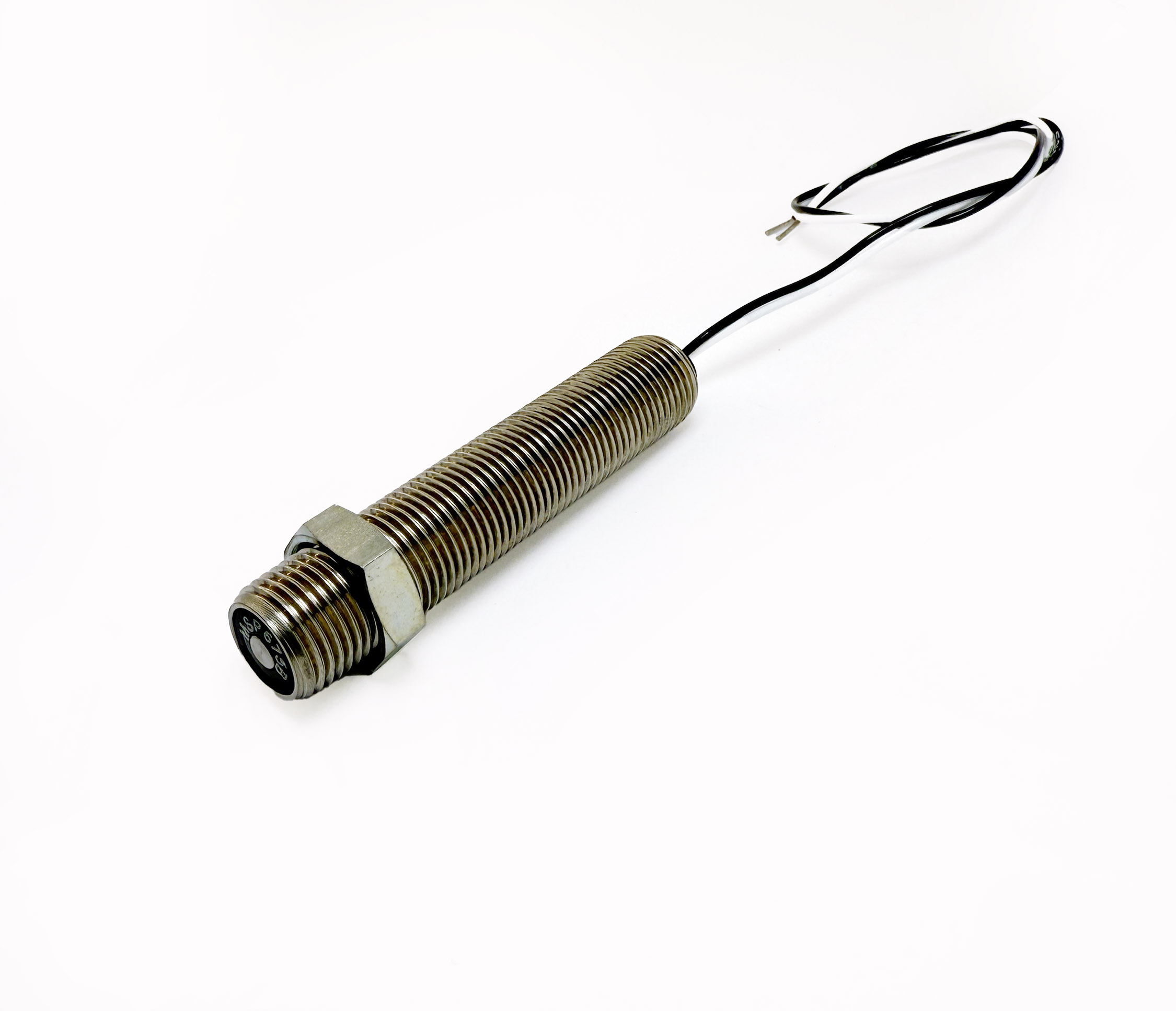

401027-90401027-90 Learn More62.5 +/- 22.5 ohm25 mHAnalog18 Add

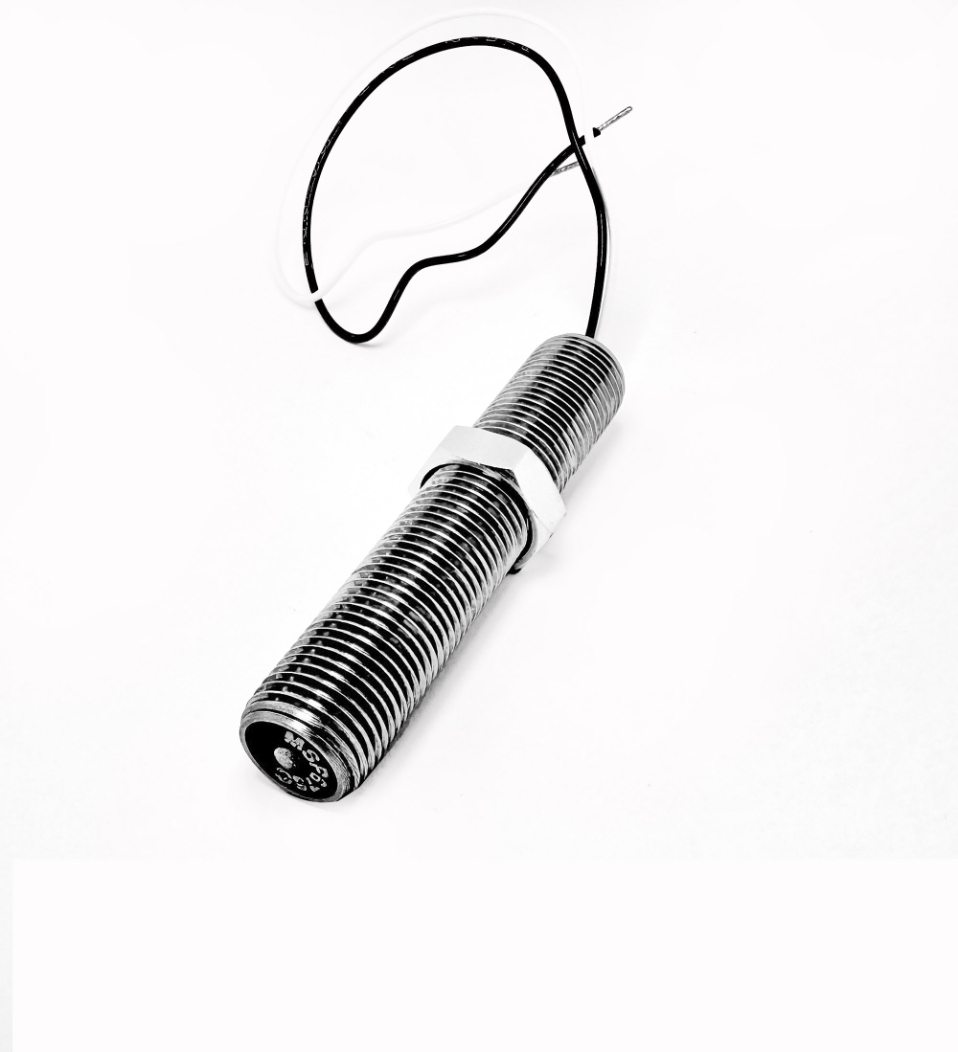

401028-00401028-00 Learn More180 +/- 36 ohm60 mHAnalog18 Add
401028-10401028-10 Learn More1150 +/- 230 ohm425 mHAnalog18 Add

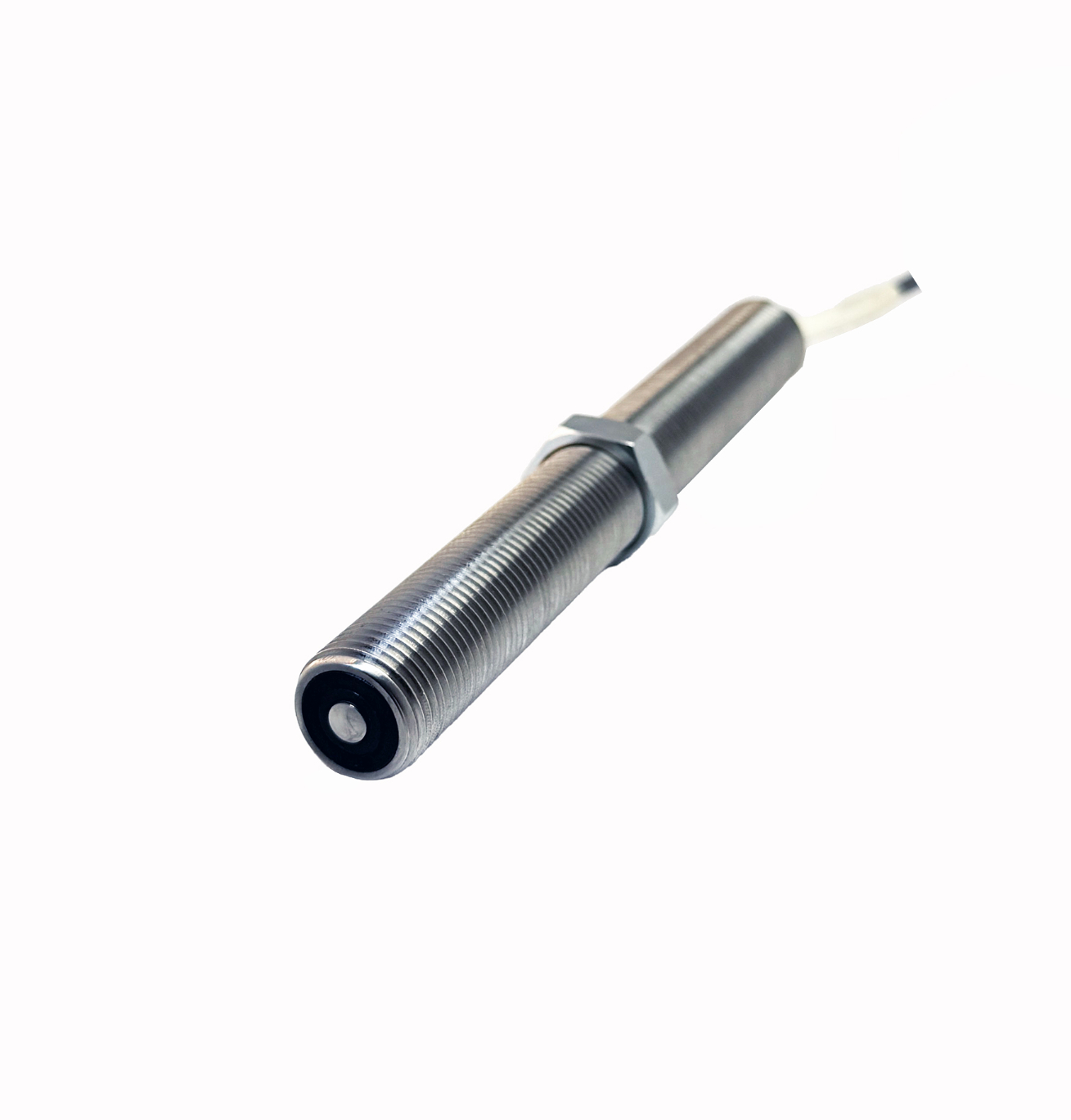

401028-20401028-20 Learn More62.5 +/- 22.5 ohm25 mHAnalog18 Add
Placeholder image401028-30 Learn More180 +/- 36 ohm60 mHAnalog18 Add
Placeholder image401028-40 Learn More180 +/- 36 ohm60 mHAnalog18 Add
401028-50401028-50 Learn More2000 ohm700 mHAnalog18 Add
Placeholder image401028-80 Learn More1400 +/- 280 ohm450 mHAnalog18 Add
Placeholder image401029-10 Learn More180 +/- 36 ohm60 mHAnalog17 Add
Placeholder image401029-20 Learn More180 +/- 36 ohm85 mHAnalog18 Add
401029-30401029-30 Learn More250 ohm85 mHAnalog18 Add
Placeholder image401029-40 Learn More280 +/- 56 ohm150 mHAnalog18 Add
Placeholder image401029-50 Learn More1000 +/- 200 ohm360 mHAnalog18 Add
Placeholder image401030-20 Learn More913 +/- 182.6 ohm250 mHAnalog18 Add

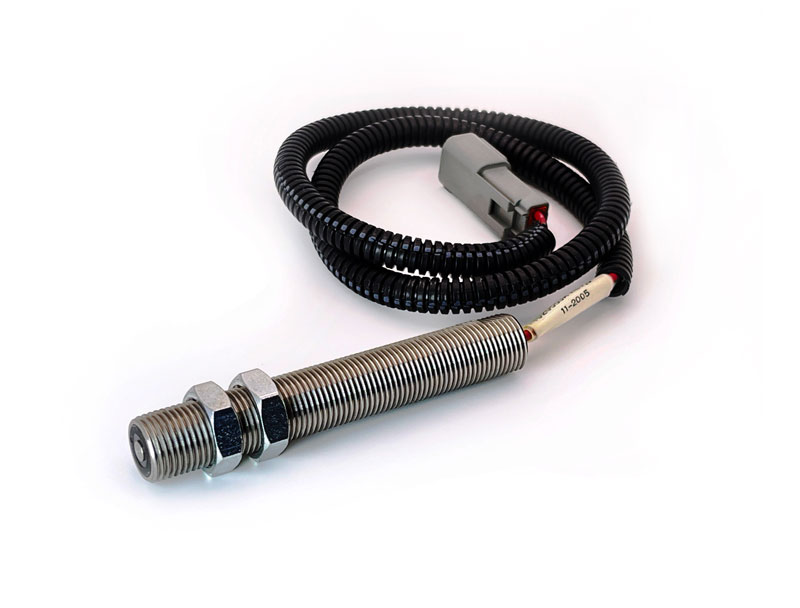

401030-30401030-30 Learn More913 +/- 182.6 ohm250 mHAnalog18 Add

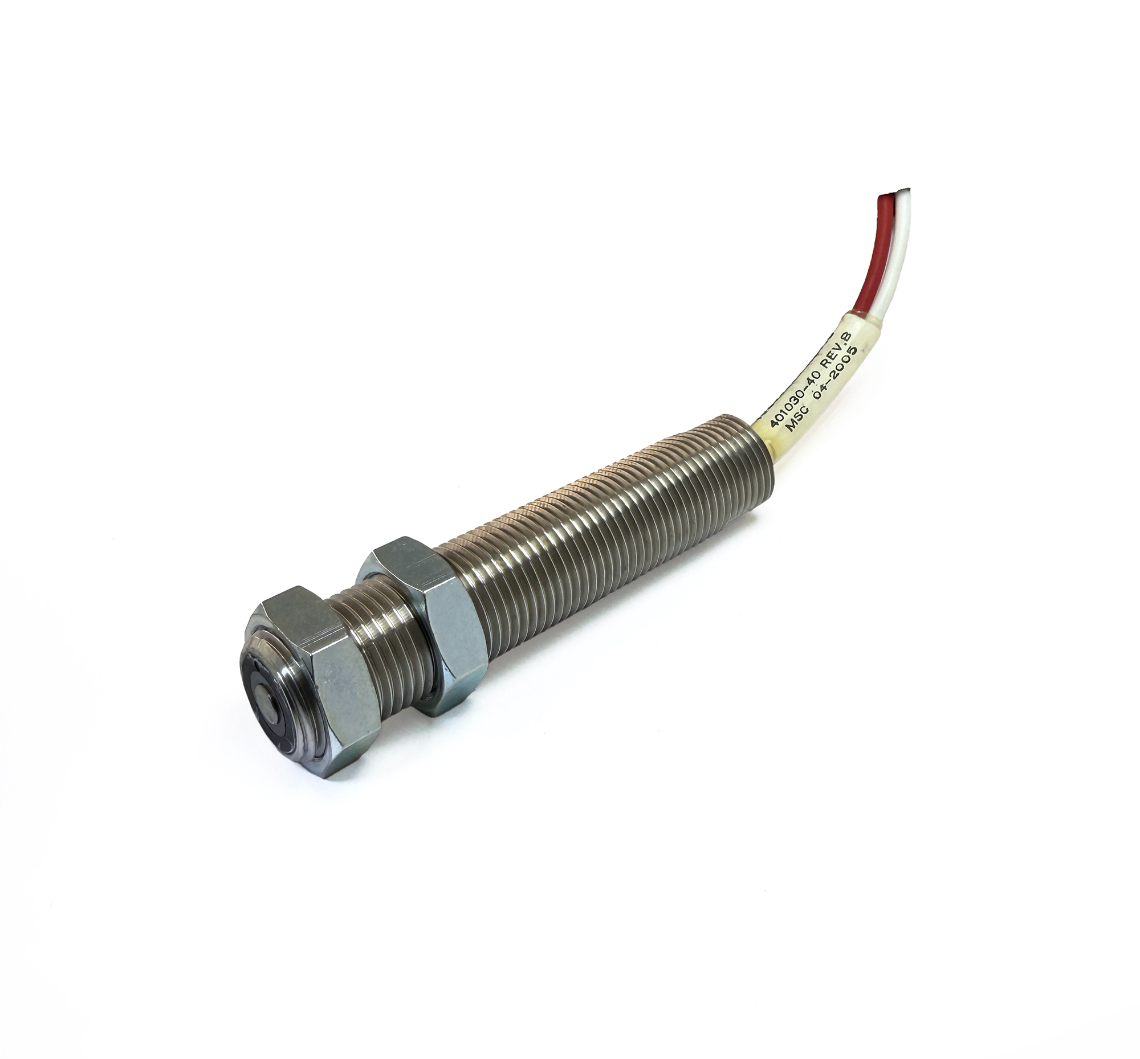

401030-40401030-40 Learn More913 +/- 182.6 ohm250 mHAnalog18 Add
Placeholder image401030-50 Learn More913 +/- 182.6 ohm250 mHAnalog18 Add
401030-70401030-70 Learn More258 +/- 42 ohm60 mHAnalog18 Add

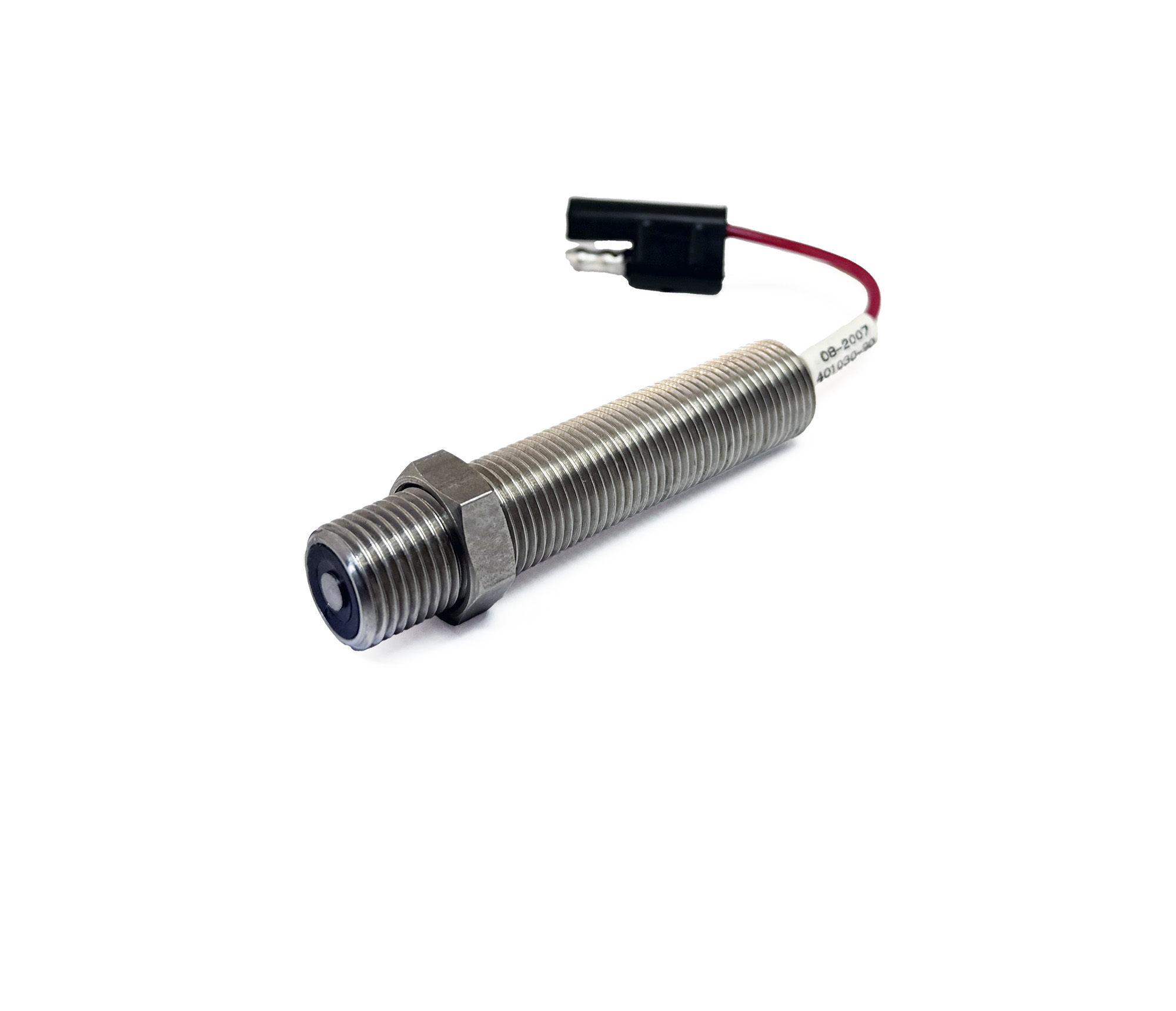

401030-90401030-90 Learn More180 +/- 36 ohm60 mHAnalog17 Add
401031-00401031-00 Learn More1750 +/- 175 ohm900 mHAnalog17 Add
Placeholder image401031-30 Learn More180 +/- 36 ohm60 mHAnalog18 Add
Placeholder image401031-40 Learn More180 +/- 36 ohm60 mHAnalog18 Add
401031-50401031-50 Learn More180 +/- 36 ohm60 mHAnalog18 Add
Placeholder image401031-70 Learn More180 +/- 18 ohm60 mHAnalog18 Add
401031-80401031-80 Learn More180 +/- 18 ohm60 mHAnalog18 Add
Placeholder image401031-90 Learn More180 +/- 18 ohm60 mHAnalog18 Add

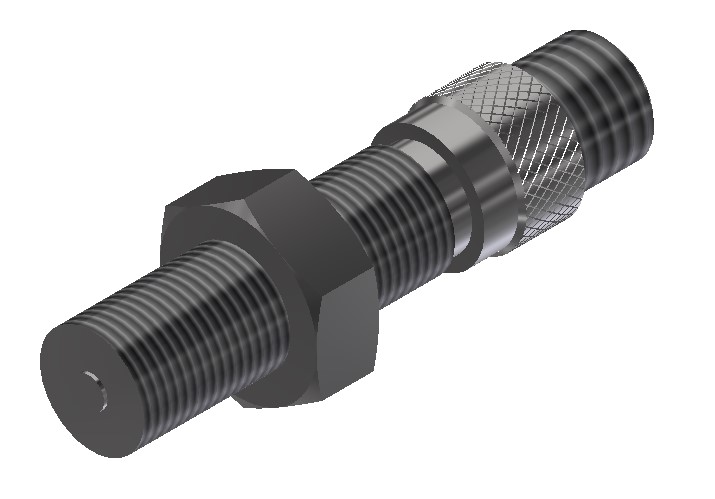

401032-10401032-10 Learn More200 ohm46 mHAnalog18 Add
Placeholder image401032-20 Learn More1100 ohm450 mHAnalog18 Add
401032-30401032-30 Learn More500 ohm87 mHAnalog18 Add

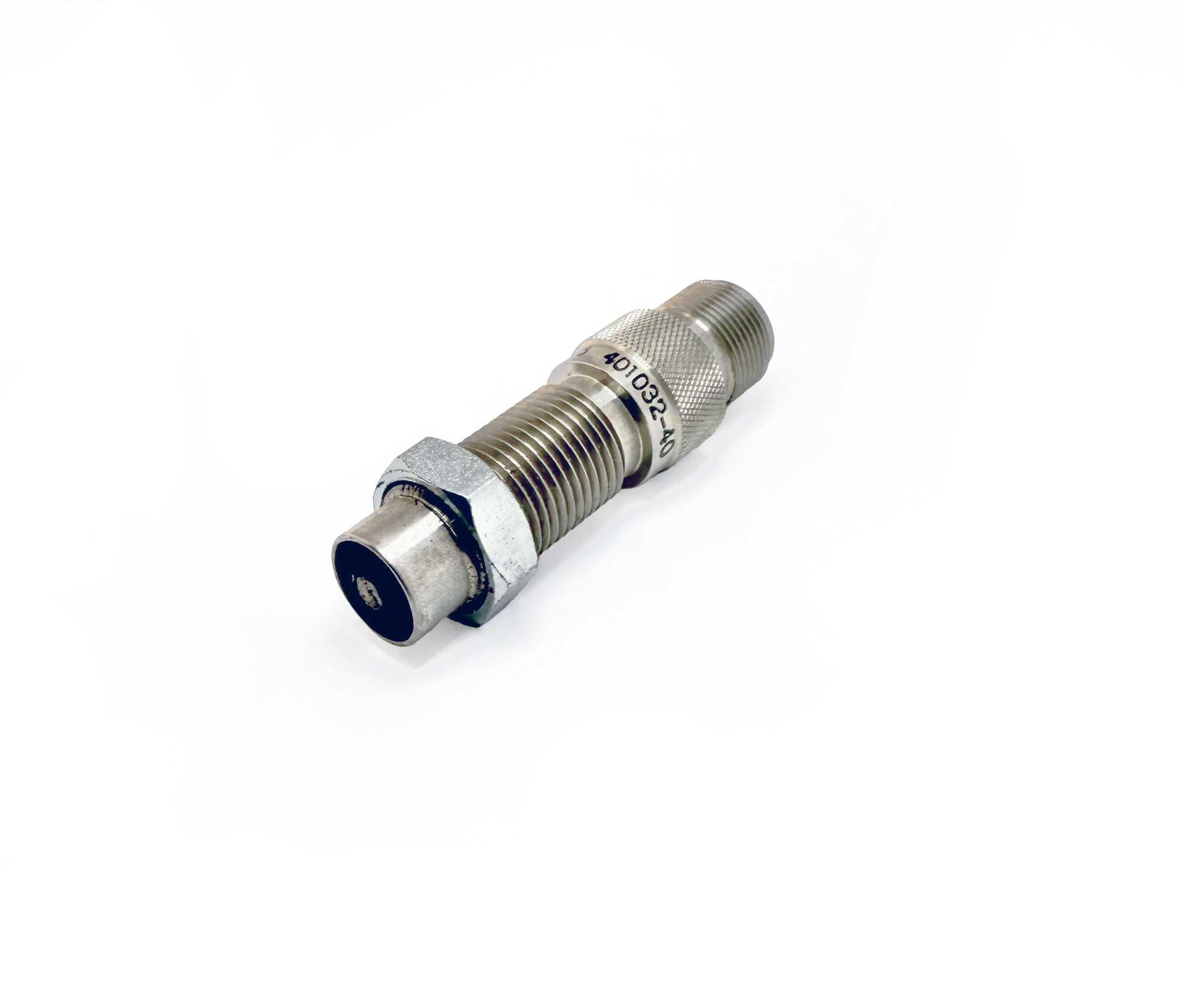

401032-40401032-40 Learn More180 +/- 36 ohm85 mHAnalog18 Add
Placeholder image401032-50 Learn More913 +/- 182.6 ohm250 mHAnalog18 Add
Placeholder image401032-60 Learn More913 +/- 182.6 ohm250 mHAnalog18 Add
Placeholder image401032-80 Learn More180 +/- 36 ohm85 mHAnalog18 Add
Placeholder image401033-00 Learn More650 +/- 130 ohm-Analog20 Add
401033-10401033-10 Learn More180 +/- 18 ohm60 mHAnalog18 Add
401033-20401033-20 Learn More114 to 140 ohm40 mHAnalog18 Add
Placeholder image401033-30 Learn More180 +/- 18 ohm60 mHAnalog18 Add

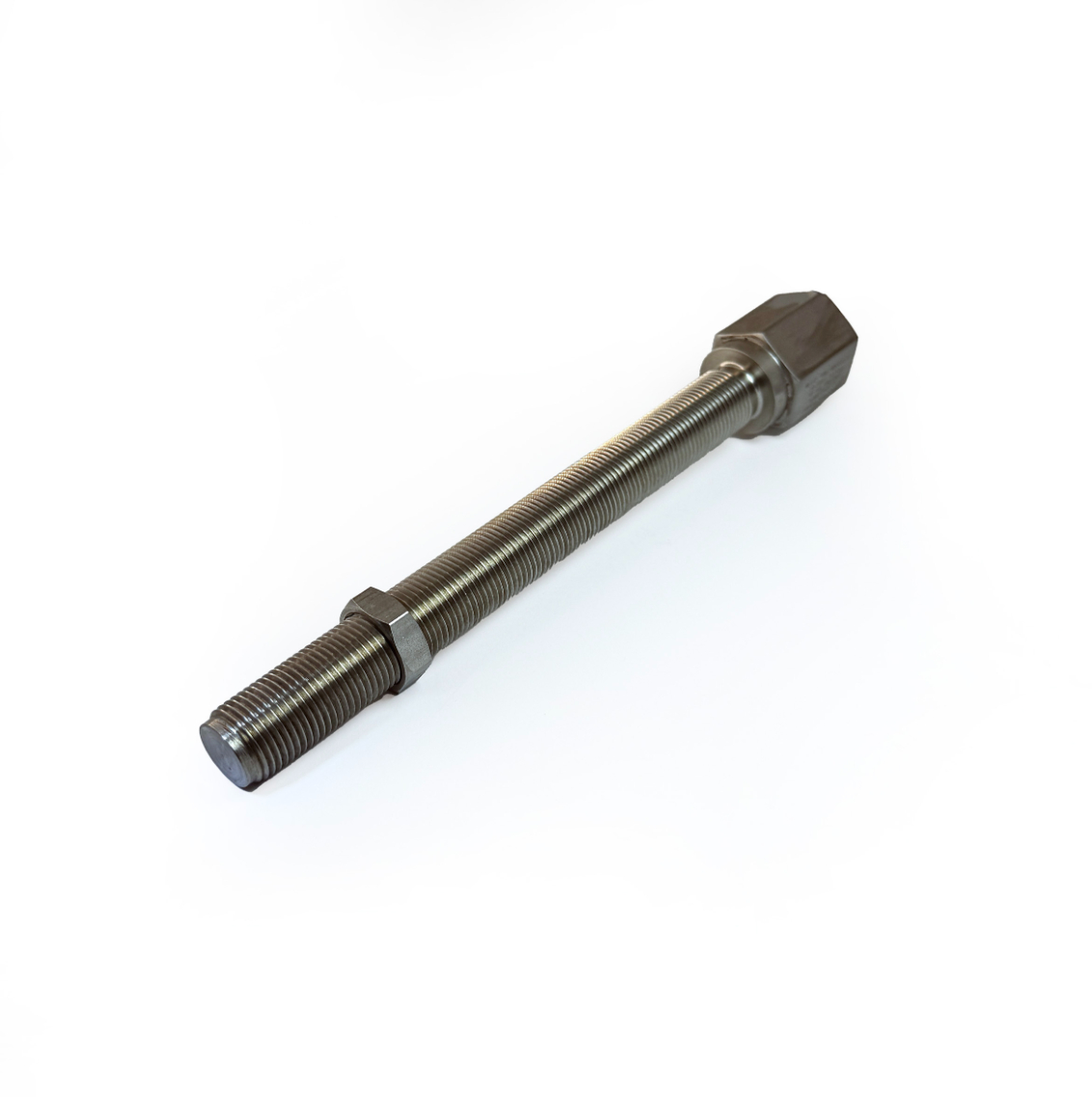

401033-40401033-40 Learn More180 +/- 18 ohm60 mHAnalog18 Add

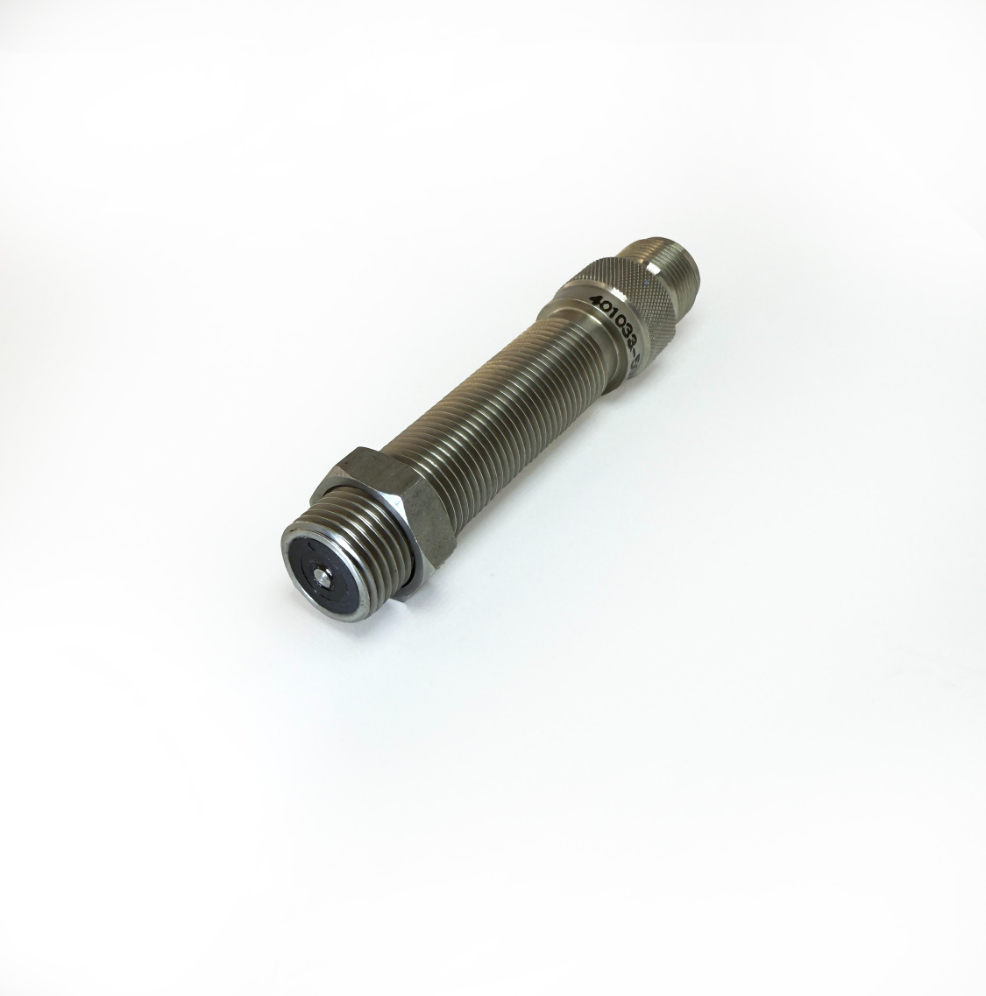

401033-50401033-50 Learn More1200 ohm450 mHAnalog18 Add
Placeholder image401033-70 Learn More1200 +/- 240 ohm400 +/- 100 mHAnalog18 Add
Placeholder image401033-80 Learn More1600 +/- 160 ohm900 mHAnalog17 Add
Placeholder image401033-90 Learn More2000 ohm700 mHAnalog18 Add
Placeholder image401034-20 Learn More169 +/- 25 ohm85 mHAnalog18 Add
Placeholder image401034-30 Learn More180 +/- 18 ohm60 mHAnalog18 Add
Placeholder image401034-40 Learn More180 +/- 18 ohm60 mHAnalog18 Add
Placeholder image401034-50 Learn More180 +/- 18 ohm60 mHAnalog18 Add
Placeholder image401034-60 Learn More180 +/- 18 ohm60 mHAnalog18 Add
Placeholder image401034-70 Learn More180 +/- 18 ohm60 mHAnalog18 Add
Placeholder image401034-80 Learn More180 +/- 18 ohm60 mHAnalog20 Add
Placeholder image401035-00 Learn More180 +/- 18 ohm60 mHAnalog20 Add
Placeholder image401037-00 Learn More913 +/- 182.6 ohm250 mHAnalog18 Add

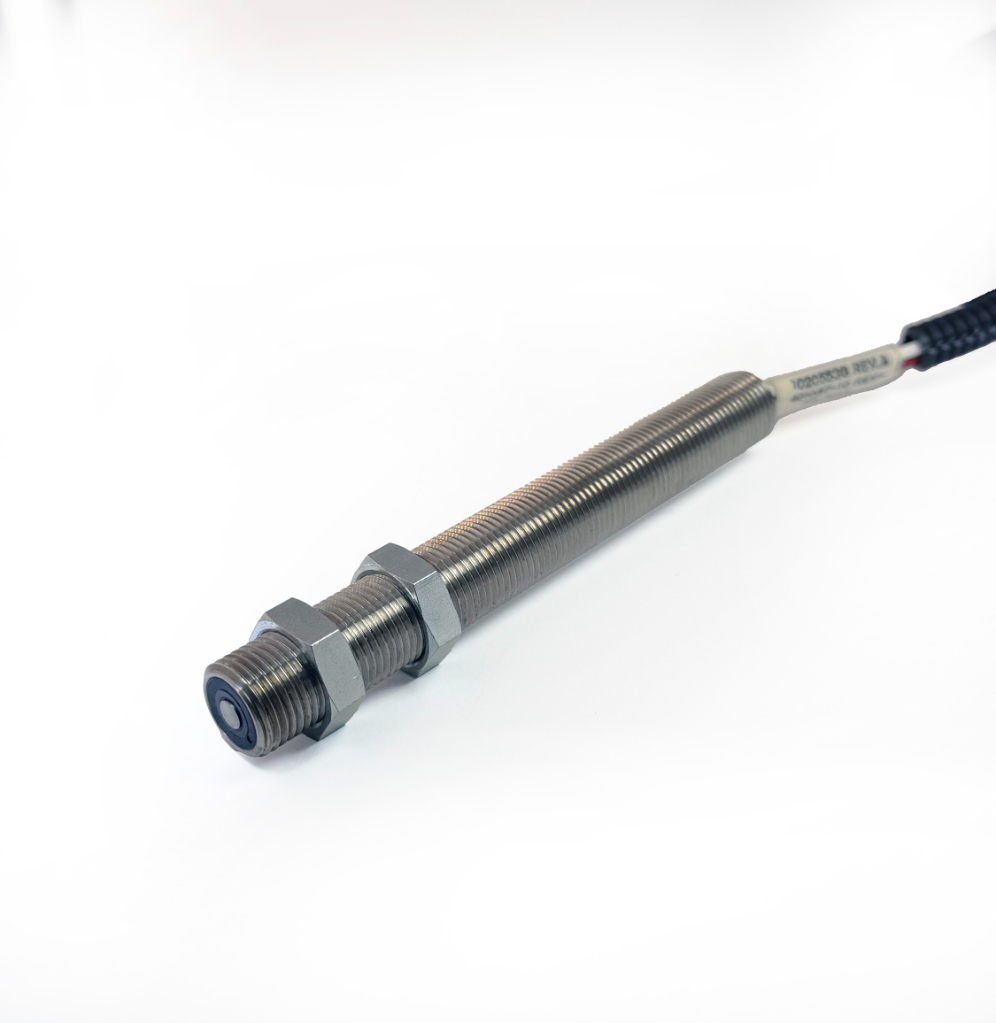

401037-10401037-10 Learn More913 +/- 182.6 ohm250 mHAnalog18 Add

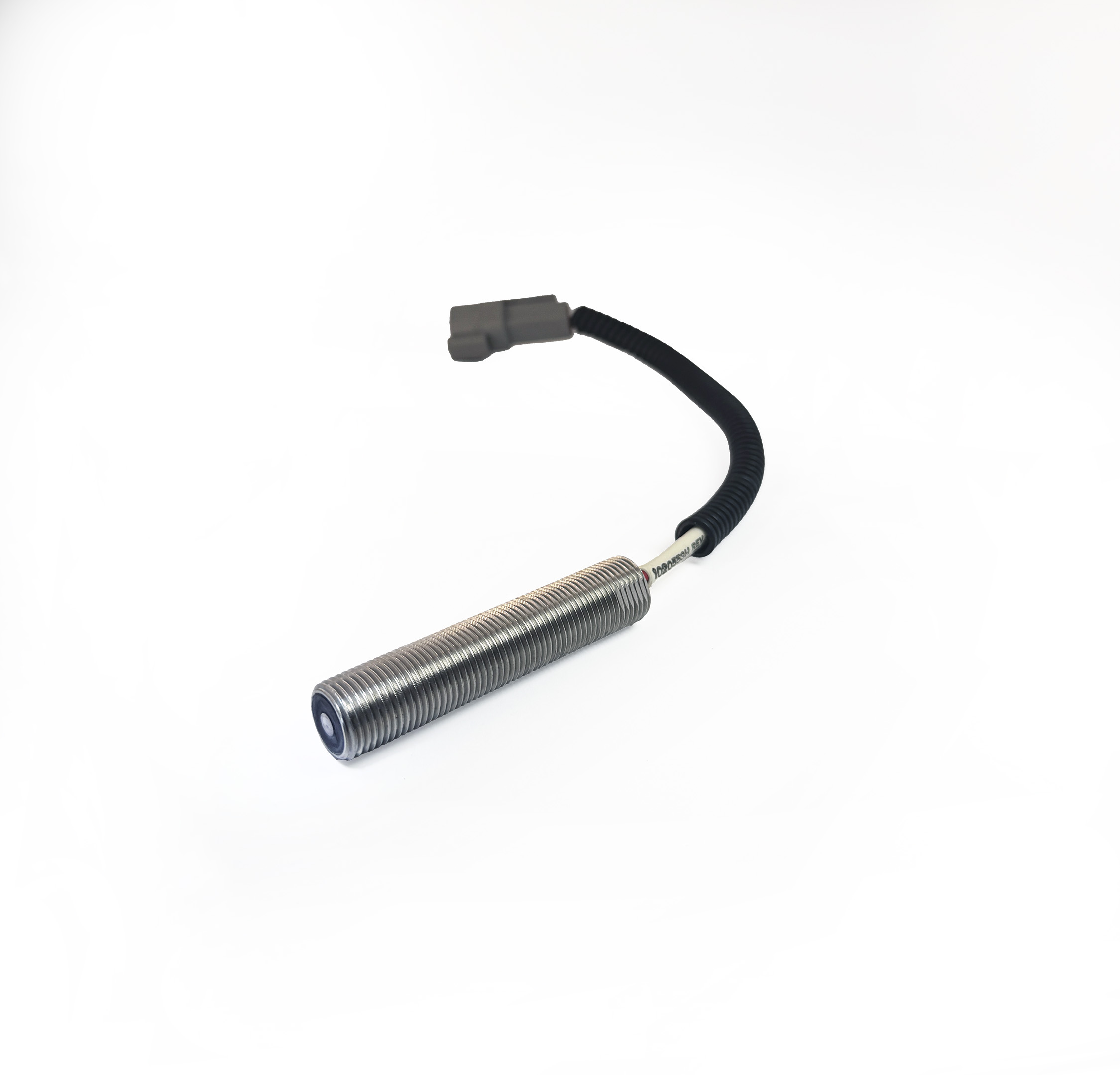

401037-20401037-20 Learn More913 +/- 182.6 ohm250 mHAnalog18 Add
Placeholder image401037-30 Learn More913 +/- 182.6 ohm250 mHAnalog18 Add
Placeholder image401037-40 Learn More913 +/- 182.6 ohm250 mHAnalog18 Add
Placeholder image401038-00 Learn More180 +/- 36 ohm85 mHAnalog18 Add
Placeholder image401039-20 Learn More180 +/- 36 ohm60 mHAnalog18 Add
Placeholder image401039-30 Learn More180 +/- 36 ohm60 mHAnalog18 Add
Placeholder image401039-60 Learn More180 +/- 36 ohm60 mHAnalog18 Add

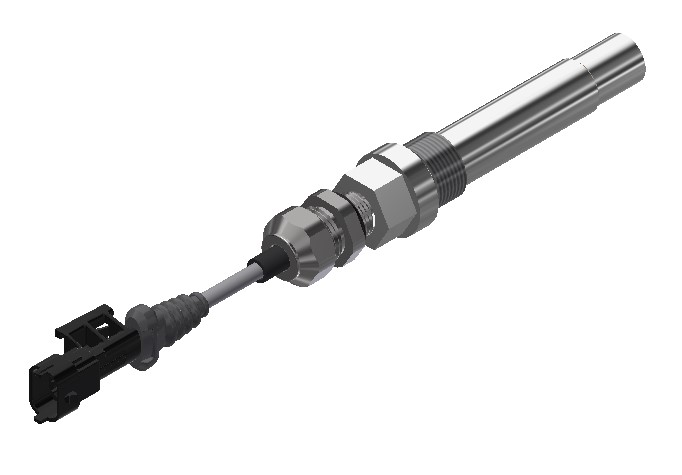

401040-00401040-00 Learn More1350 +/- 135 ohm450 mHAnalog17 Add
401040-10401040-10 Learn More1350 +/- 135 ohm450 mHAnalog17 Add
401040-20401040-20 Learn More1750 +/- 175 ohm900 mHAnalog17 Add

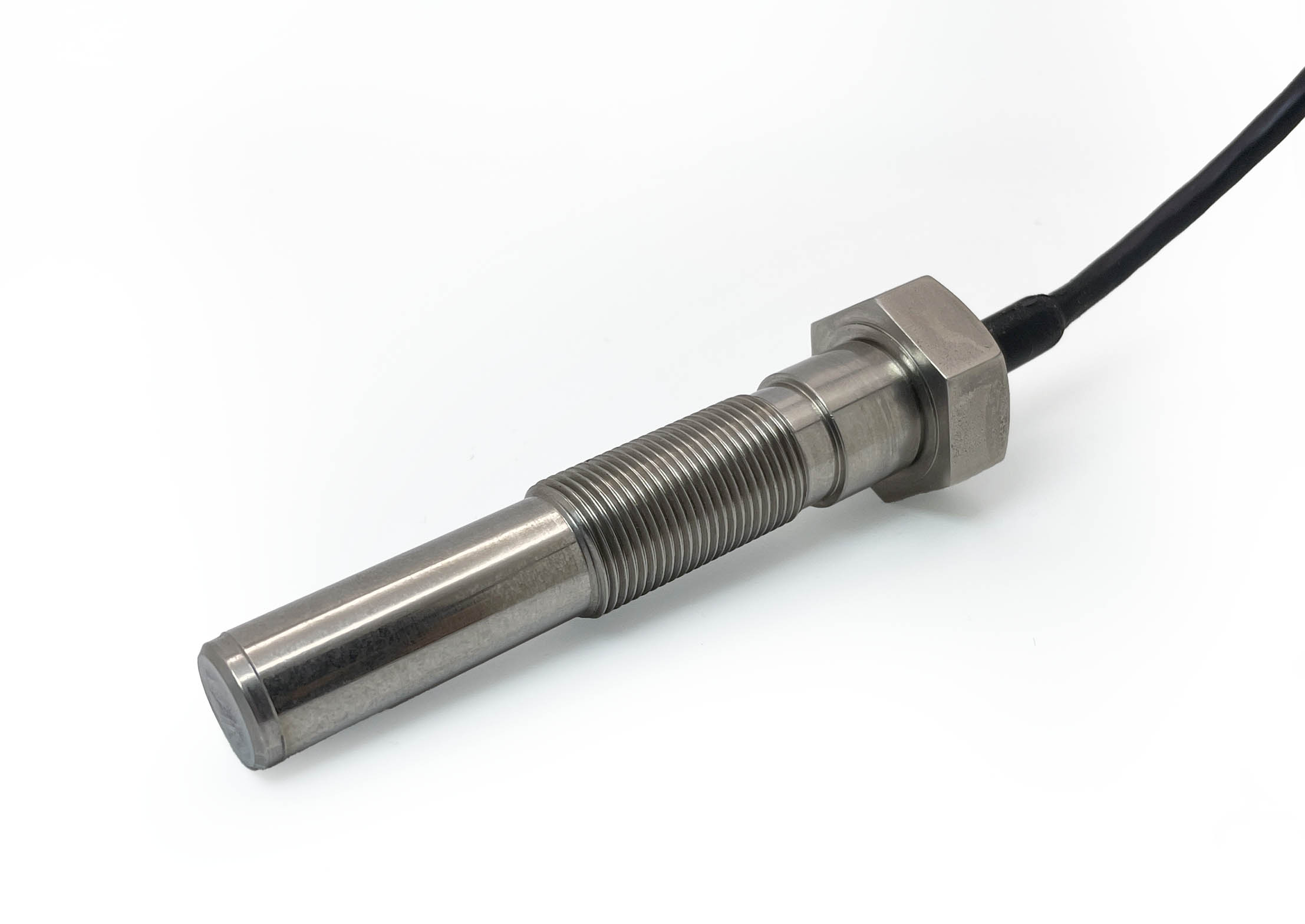

401040-30401040-30 Learn More1750 +/- 175 ohm900 mHAnalog17 Add
Placeholder image401040-40 Learn More1750 +/- 175 ohm900 mHAnalog17 Add
Placeholder image401040-50 Learn More1750 +/- 175 ohm900 mHAnalog17 Add
Placeholder image401040-60 Learn More1750 +/- 175 ohm900 mHAnalog17 Add
Placeholder image401040-70 Learn More1750 +/- 175 ohm900 mHAnalog17 Add
Placeholder image401044-10 Learn More800 +/- 160ohm-Analog24 Add

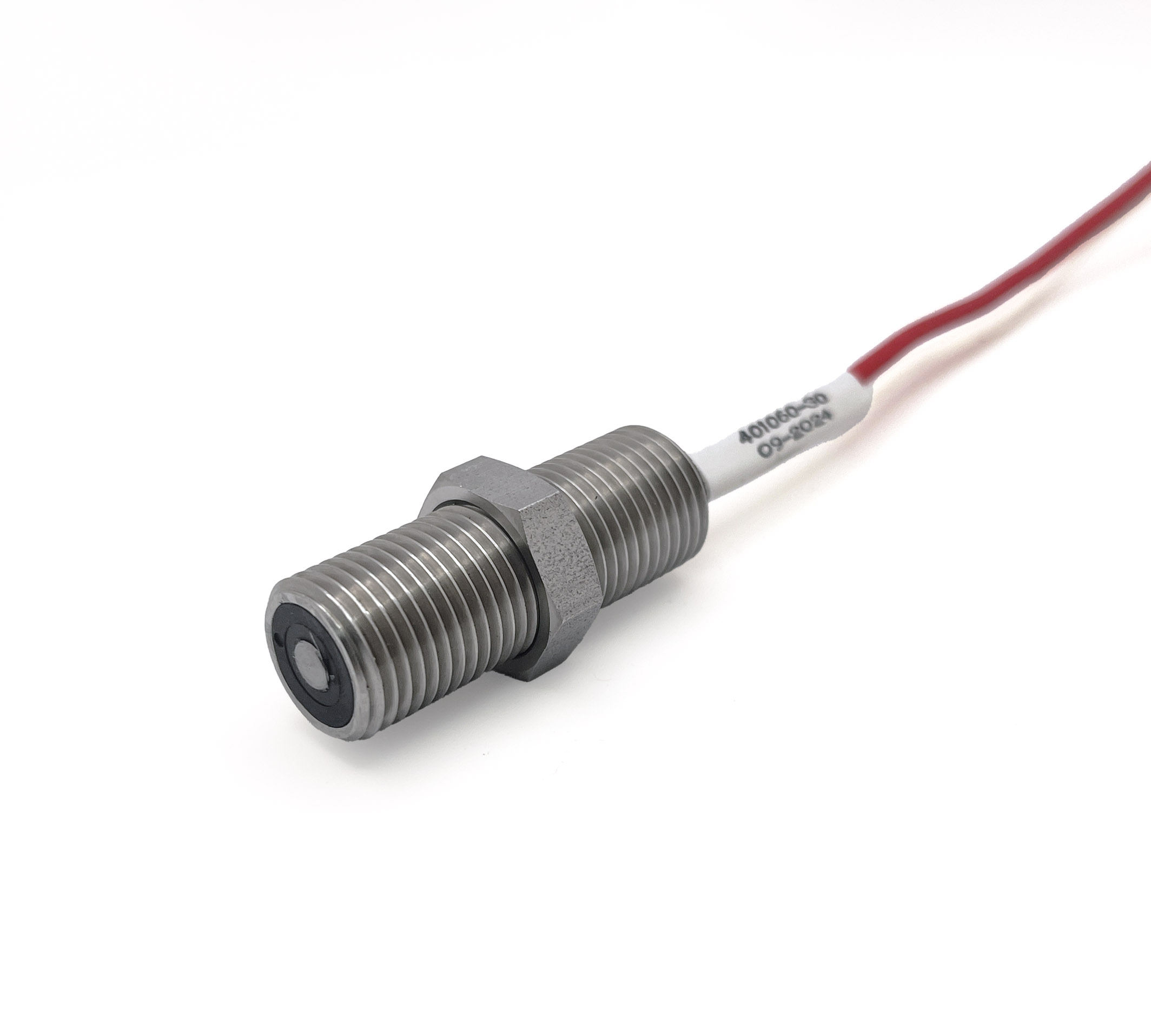

401060-30401060-30 Learn More180 +/- 36 ohm60 mHAnalog17 Add
Placeholder image401060-40 Learn More250 ohm100 mHAnalog17 Add

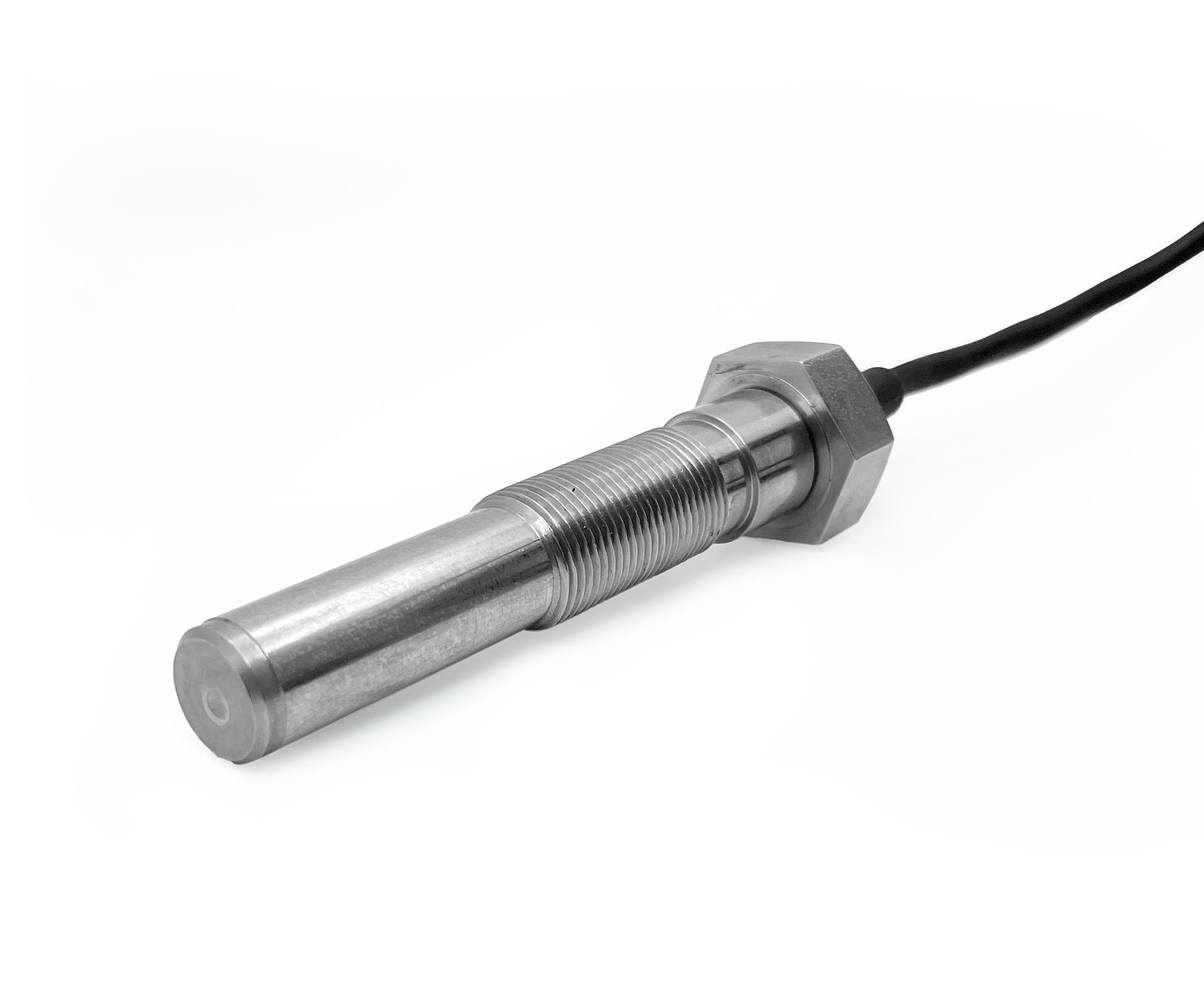

401060-60401060-60 Learn More1750 +/- 175 ohm900 mHAnalog17 Add

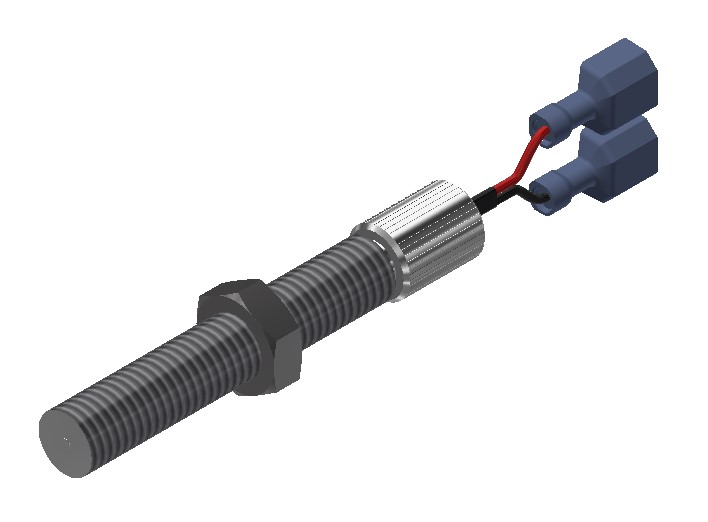

401061-00401061-00 Learn More1000 ohm250 mHAnalog15 Add
Placeholder image401070-10 Learn More180 +/- 36 ohm60 mHAnalog18 Add
401070-20401070-20 Learn More180 +/- 36 ohm60 mHAnalog17 Add
Placeholder image401070-40 Learn More144-198 ohm85 mHAnalog18 Add
Placeholder image401070-50 Learn More230 ohm85 mHAnalog18 Add
Placeholder image401070-60 Learn More144-198 ohm85 mHAnalog18 Add
Placeholder image401070-70 Learn More1200 ohm450 mHAnalog18 Add
Placeholder image401070-80 Learn More1150 ohm250 mHAnalog18 Add

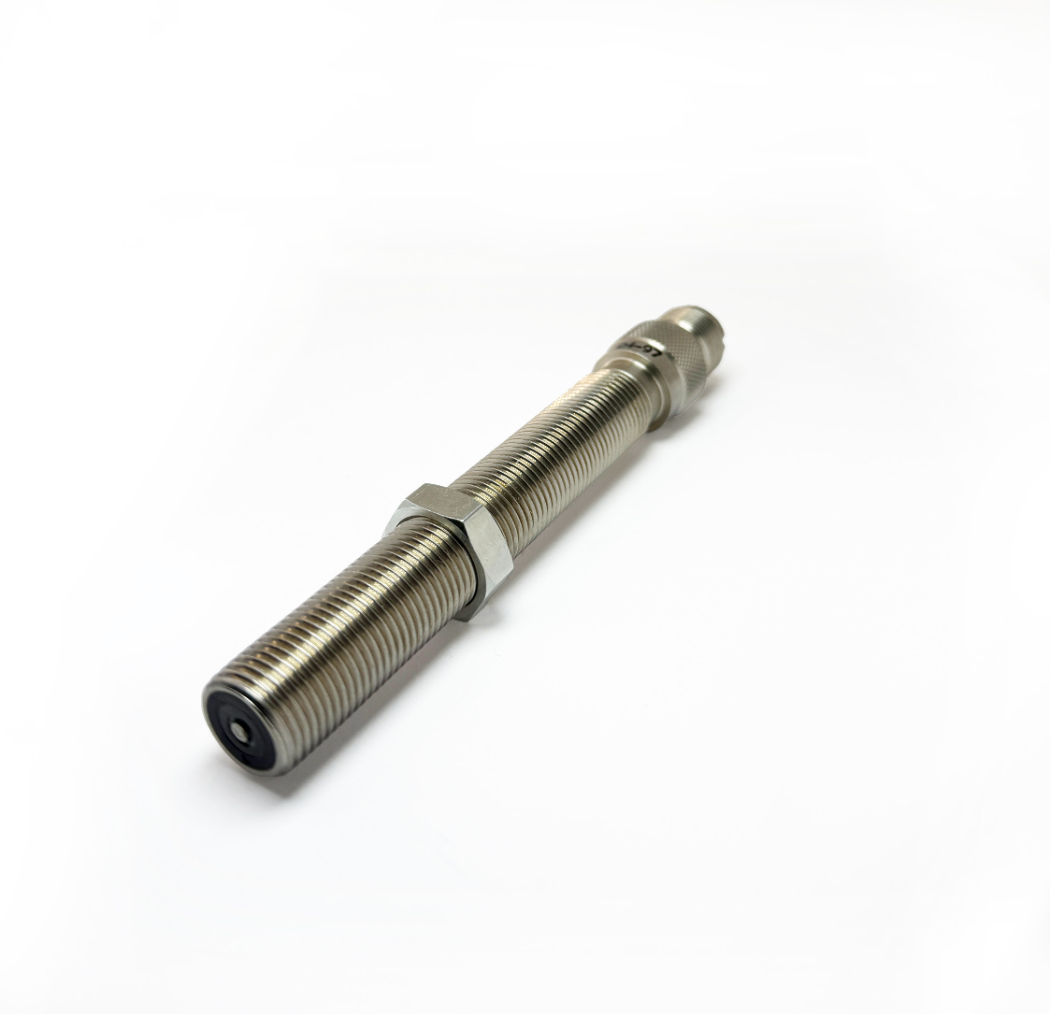

401070-90401070-90 Learn More1200 ohm450 mHAnalog18 Add
Placeholder image401071-00 Learn More40-85 ohm25 mHAnalog18 Add
Placeholder image401071-40 Learn More430 +/- 86 ohm140 mHAnalog18 Add
401071-80401071-80 Learn More1200 ohm330 mHAnalog18 Add
Placeholder image401071-90 Learn More1200 ohm330 mHAnalog18 Add
Placeholder image401072-50 Learn More180 +/- 36 ohm60 mHAnalog17 Add
Placeholder image401072-60 Learn More913 +/- 182.6 ohm250 mHAnalog18 Add
Placeholder image401072-70 Learn More180 +/- 36 ohm60 mHAnalog18 Add
Placeholder image401072-80 Learn More180 +/- 36 ohm60 mHAnalog18 Add
Placeholder image401072-90 Learn More180 +/- 36 ohm85 mhAnalog17 Add
Placeholder image401073-70 Learn More430 +/- 86 ohm140 mHAnalog18 Add
Placeholder image401074-10 Learn More40-95 ohm25mHAnalog18 Add

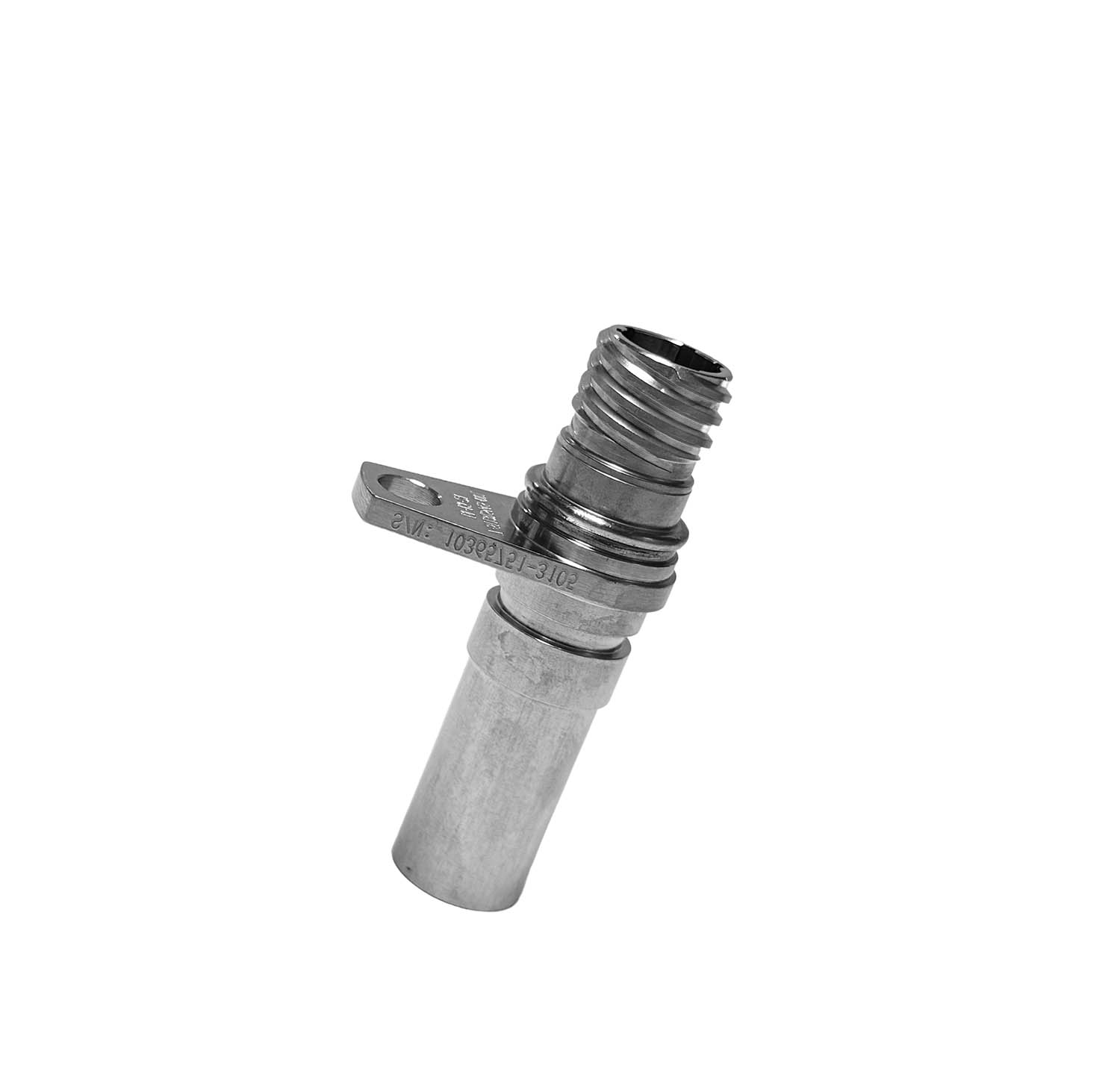

401074-90401074-90 Learn More1700 +/- 340 ohm480 mHAnalog- Add
Placeholder image401076-00 Learn More1200 ohm330 mHAnalog18 Add
Placeholder image401077-00 Learn More1280 ohm390 mHAnalog18 Add

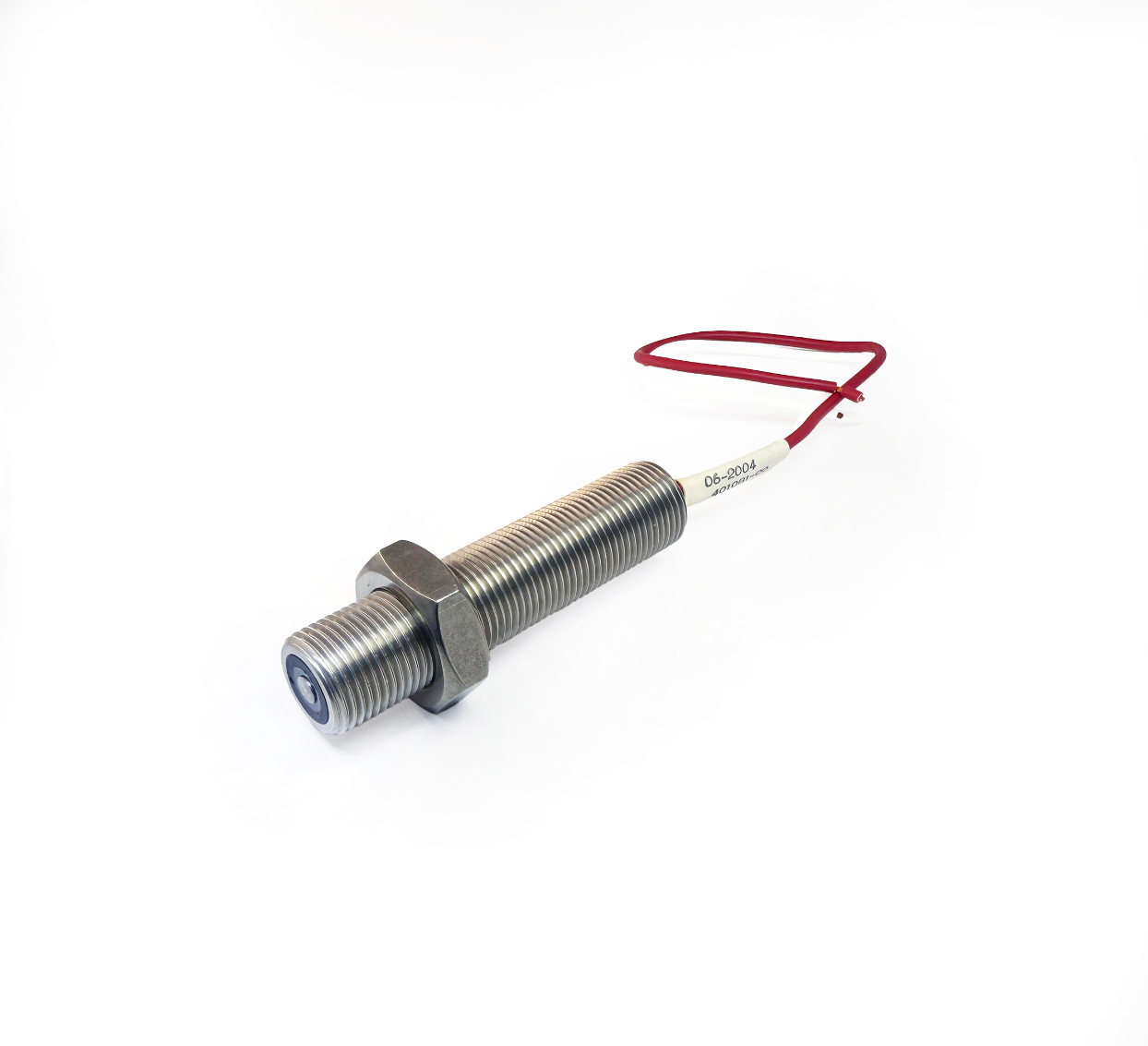

401081-00401081-00 Learn More180 +/- 36 ohm60 mHAnalog17 Add
Placeholder image401081-30 Learn More180 +/- 36 ohm60 mHAnalog17 Add
401081-40401081-40 Learn More180 +/- 36 ohm60 mHAnalog17 Add
Placeholder image401081-50 Learn More2000+/- 400 ohm700 mHAnalog17 Add
Placeholder image401081-60 Learn More2000+/- 400 ohm700 mHAnalog17 Add
Placeholder image401081-70 Learn More2000+/- 400 ohm700 mHAnalog17 Add
Placeholder image401081-80 Learn More180+/- 36 ohm60 mHAnalog17 Add
Placeholder image401081-90 Learn More180+/- 36 ohm60 mHAnalog17 Add
Placeholder image401082-00 Learn More2000+/- 400 ohm700 mHAnalog17 Add
Placeholder image401082-40 Learn More144 to 198 ohm85 mHAnalog17 Add
Placeholder image401083-00 Learn More1600 +/- 320 ohm330 +/- 66 mHAnalog1.5mm Add
Placeholder image401085-00 Learn More180 +/- 36 ohm60 mHAnalog1.5mm Add
401085-10401085-10 Learn More1000 +/- 200 ohm174 mHAnalog1.5mm Add

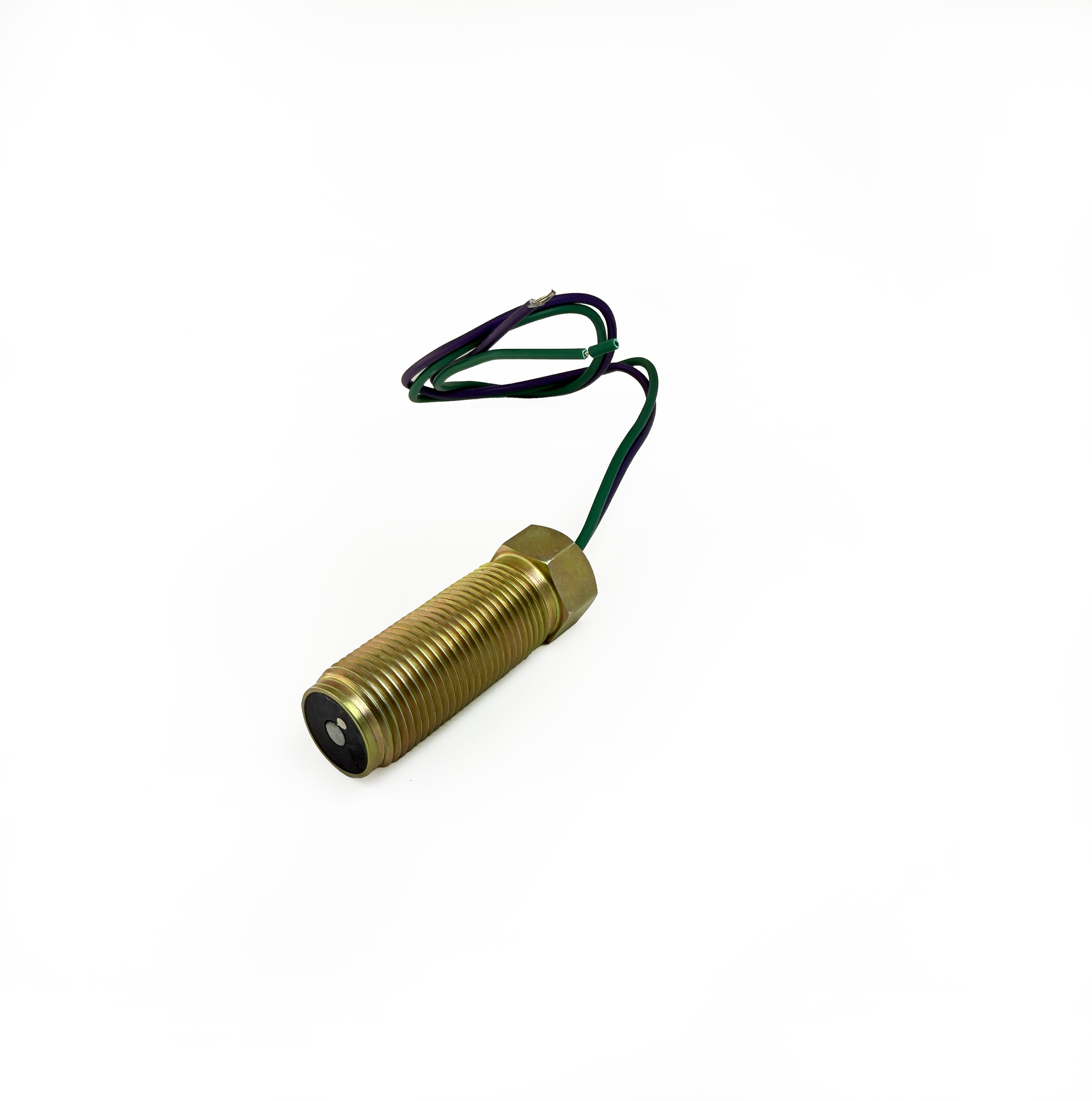

401090-00401090-00 Learn More450 +/- 90 ohm210 +/- 42 mHAnalog16 Add
Placeholder image401090-10 Learn More70 +/- 14 ohm12 +/- 2.4 mHAnalog16 Add
401090-20401090-20 Learn More80 +/- 16 ohm30 +/- 6 mHAnalog16 Add
Placeholder image401090-40 Learn More180 +/- 36 ohm60 mHAnalog16 Add
Placeholder image401090-70 Learn More1200 +/- 240 ohm420 mH16 Add
401090-80401090-80 Learn More2500 +/- 250 ohm800 mHAnalog16 Add
Placeholder image401090-90 Learn More2500 +/- 250 ohm800 mHAnalog16 Add
Placeholder image401091-20 Learn More1200 +/- 240 ohm420 mH-16 Add
Placeholder image401091-30 Learn More450 +/- 90 ohm210 +/- 42 mHAnalog16 Add
Placeholder image401091-40 Learn More180 +/- 36 ohm60 mHAnalog16 Add
Placeholder image401091-60 Learn More565 ohm235 mHAnalog16 Add
Placeholder image401091-70 Learn More450 +/- 90 ohm100 mHAnalog16 Add
Placeholder image401091-90 Learn More180 +/- 36 ohm60 mHAnalog16 Add
Placeholder image401092-00 Learn More740 +/- 148 ohmAnalog- Add
401092-20401092-20 Learn More180 +/- 36 ohm60 mHAnalog16 Add
Placeholder image401092-30 Learn More180 +/- 36 ohm60 mHAnalog16 Add
Placeholder image401092-40 Learn More181 +/- 18 ohm60 mHAnalog20 Add
401092-60401092-60 Learn More740 +/- 148 ohmAnalog- Add
Placeholder image401092-70 Learn More740 +/- 148 ohmAnalog- Add
401092-80401092-80 Learn More565 ohm90 mH-16 Add
401093-00401093-00 Learn More1600 +/- 360 ohm330 mHAnalog1.25mm Add
401093-10401093-10 Learn More1600 +/- 360 ohm330 mHAnalog18 Add
401093-20401093-20 Learn More1600 +/- 360 ohm330 mHAnalog1.25 mm Add
401093-30401093-30 Learn More1600 +/- 360 ohm330 mHAnalog1.25 mm Add
Placeholder image401093-40 Learn More450 +/- 90 ohm100 mH-16 Add
401093-60401093-60 Learn More40-85 ohm25 mH-1mm Add
Placeholder image401093-70 Learn More430 +/- 86 ohm140 mHAnalog18 Add
Placeholder image401093-80 Learn More2500 +/- 250 ohm800 mHAnalog16 Add
Placeholder image401093-90 Learn More1200 ohm420 mH-16 Add
Placeholder image401094-00 Learn More1200 ohm330 mHAnalog18 Add
Placeholder image401094-10 Learn More1200 ohm330 mHAnalog18 Add
Placeholder image401094-20 Learn More1200 ohm330 mHAnalog18 Add
Placeholder image401094-30 Learn More1200 ohm330 mHAnalog18 Add
401094-40401094-40 Learn More1200 ohm330 mHAnalog18 Add
Placeholder image401094-70 Learn More600 +/- 30 ohm130 mH-1.5 mm Add
Placeholder image401094-80 Learn More1000 ohm174 mHAnalog24 Add
Placeholder image401094-90 Learn More1000 ohm174 mHAnalog24 Add
Placeholder image401095-00 Learn More800 +/- 160 ohmAnalog1mm Add
Placeholder image401095-20 Learn More1600 +/- 360 ohm330 mHAnalog1.25mm Add
Placeholder image401095-30 Learn More650 +/- 163 ohm150 mHAnalog1mm Add
Placeholder image401095-60 Learn More1500 +/- 300 ohm290 mHAnalog1mm Add
Placeholder image401095-80 Learn More1200 ohm420 mH-16 Add
Placeholder image401095-90 Learn More650 +/- 163 ohm150 mHAnalog1mm Add
Placeholder image401097-00 Learn More180 +/- 36 ohm40 mH-16 Add
Placeholder image401097-20 Learn More180 +/- 36 ohm40 mH-16 Add
Placeholder image401098-10 Learn More1200 +/- 240 ohm420 mH-16 Add
Placeholder image401098-20 Learn More1200 +/- 240 ohm420 mH-16 Add
401098-30401098-30 Learn More1200 +/- 240 ohm420 mH-16 Add
Placeholder image401098-40 Learn More180 +/- 36 ohm60 mHAnalog16 Add
401098-50401098-50 Learn More3100 +/- 310 ohm1.3 HAnalog16 Add
Placeholder image401098-60 Learn More3100 +/- 310 ohm1.3 H16 Add
Placeholder image401098-70 Learn More180 +/- 36 ohm60 mHAnalog16 Add
Placeholder image401098-80 Learn More180 +/- 36 ohm60 mHAnalog16 Add
Placeholder image401099-00 Learn More180 +/- 36 ohm60 mHAnalog16 Add
401101-30401101-30 Learn More180 +/- 36 ohm60 mHAnalog18 Add
Placeholder image401631-70 Learn More180 +/- 18 ohm60 mHAnalog18 Add
Placeholder image401633-10 Learn More180 +/- 18 ohm60 mHAnalog18 Add
Placeholder image401633-30 Learn More180 +/- 18 ohm60 mHAnalog18 Add
Placeholder image401633-40 Learn More180 +/- 18 ohm60 mHAnalog18 Add
Placeholder image401635-00 Learn More180 +/- 18 ohm60 mHAnalog20 Add
Placeholder image401692-40 Learn More180 +/- 18 ohm60 mHAnalog20 Add
Placeholder image402003-30 Learn More-- Add
Placeholder image402008-20 Learn More-- Add
Placeholder image402009-00 Learn More35 ohm--- Add
Placeholder image402009-10 Learn More---- Add
402011-00402011-00 Learn More40-85 ohms--18 Add
Placeholder image402011-10 Learn More---18 Add
Placeholder image402011-30 Learn More---18 Add
402011-40402011-40 Learn More650 +/- 130 ohm--24 Add
Placeholder image402011-50 Learn More650 +/- 130 ohm--24 Add
Placeholder image402020-00 Learn More---- Add
Placeholder image402020-10 Learn More---- Add
Placeholder image402050-00 Learn More40-85 ohms--18 Add
Placeholder image403001-00 Learn More500 ohms87 mH18 Add
403001-10403001-10 Learn More180 +/- 36 ohm60 mH-18 Add
403001-20403001-20 Learn More500 ohms87 mH-18 Add
Placeholder image403001-30 Learn More180 +/- 36 ohm60 mH-18 Add
Placeholder image403001-40 Learn More180 +/- 36 ohm60 mH-18 Add
Placeholder image403001-80 Learn More180 +/- 36 ohm60 mH-18 Add
Placeholder image403001-90 Learn More500 ohms87 mH-18 Add
403002-00403002-00 Learn More500 ohms100 mH-16 Add
403002-10403002-10 Learn More500 +/- 100 ohm65 mH-16 Add
403002-50403002-50 Learn More500 ohms87 mH-16 Add
Placeholder image403002-80 Learn More500 +/- 100 ohm65 mH-16 Add
Placeholder image403004-00 Learn More180 +/- 36 ohm60 mH-17 Add
Placeholder imageSK12368 Learn More---17 Add
Placeholder imageSK12369 Learn More---17 Add
Placeholder imageSK12387 Learn More650 +/- 25 ohm150 mHAnalog25 Add
Placeholder imageSK12408 Learn More198 +/- 40 ohm--- Add
Placeholder image401005-80 Learn More Add
Placeholder image401011-30 Learn More130 +/- 20% ohmAnalog Add
Placeholder image401015-00 Learn More130 +/- 20% ohm18 mHAnalog Add
Placeholder image401021-90 Learn More650 +/- 100 ohmAnalog Add
Placeholder image401027-80 Learn More144 to 195 ohm85 mHAnalog18 Add
401031-60401031-60 Learn More144 to 195 ohm85 mHAnalog18 Add
Placeholder image401060-00 Learn More250 ohm100 mHAnalog2 Add
Placeholder image401060-20 Learn More180 +/- 20% ohm60 mHAnalog2 Add
Placeholder image401070-30 Learn More180 +/- 20% ohm60 mHAnalog18 Add
Placeholder image401071-50 Learn More40 to 85 ohm25 mHAnalog18 Add
Placeholder image401071-60 Learn More913 +/- 20% ohm250 mHAnalog18 Add
Placeholder image401090-60 Learn More80 +/- 20% ohm30 mHAnalog16 Add
Placeholder image401091-10 Learn More565 ohm235 mHAnalog16 Add
Placeholder image407001-00 Learn More12.5 to 14 ohm0.65 to 1.25 mH-- Add
Placeholder image407001-20 Learn More5.9 to 6.6 ohm0.34 to 0.64 mH-- Add
Placeholder image407001-30 Learn More0.52 to 0.86 ohm218 to 253 mH-- Add
Placeholder image407001-40 Learn More0.65 to 0.75 ohm0.215 to 0.220 mH-- Add
Placeholder image407001-50 Learn More0.4 to 0.7 ohm0.25 to 0.35 mH-- Add
Placeholder image407001-60 Learn More0.4 to 0.7 ohm0.2 to 0.3 mH-- Add
Placeholder image407001-70 Learn More1 ohm .25 mH-- Add
Placeholder image407001-80 Learn More---- Add
Placeholder image407002-30 Learn More.52 - .86 ohm218-253 mH-- Add
Placeholder image410001-00 Learn More---- Add
Placeholder image410001-10 Learn More---- Add
Placeholder image410001-20 Learn More---- Add
Placeholder image419020-00 Learn More66 +/- 13 ohm14.5 +/- 1.45 mH-24 Add
Placeholder image449000-00 Learn More---- Add
Placeholder image401003-20 Learn More Add
Placeholder image401004-00 Learn More20 +/- 4 ohm165 mHAnalog- Add
Placeholder image401004-10 Learn More20 +/- 4 ohm165 mHAnalog- Add
Placeholder image401005-00 Learn More650 +/- 65 ohm130 mHAnalog24 Add
Placeholder image401005-90 Learn More650 +/- 65 ohm130 mHAnalog24 Add
401006-10401006-10 Learn More670 +/- 134 ohm174 mHAnalog24 Add
Placeholder image401006-20 Learn More670 +/- 134 ohm174 mHAnalog24 Add
401006-70401006-70 Learn More1000 +/- 200 ohm275 mHAnalog24 Add
401006-90401006-90 Learn More650 +/- 100 ohm-Analog24 Add
401014-10401014-10 Learn More670 +/- 134 ohm130 mH-24 Add
Placeholder image401015-40 Learn More140 ohm Max15 mHAnalog- Add
Placeholder image401016-00 Learn More800 +/- 160 ohm-Analog24 Add
Placeholder image401016-60 Learn More800 +/- 160 ohm-Analog24 Add
401016-90401016-90 Learn More800 +/- 160 ohm-Analog24 Add
401017-20401017-20 Learn More670 +/- 134 ohm174 mHAnalog24 Add
401017-40401017-40 Learn More670 +/- 134 ohm174 mHAnalog24 Add
401017-70401017-70 Learn More800 +/- 160 ohm-Analog24 Add
Placeholder image401018-00 Learn More800 +/- 160 ohm-Analog24 Add
Placeholder image401019-00 Learn More2000 +/- 500 ohm275 mHAnalog- Add
Placeholder image401019-20 Learn More Add
401020-10401020-10 Learn More670 +/- 134 ohm90 mHAnalog- Add
401021-40401021-40 Learn More550-700 ohm120 mH-- Add
Placeholder image401021-80 Learn More650 +/- 100 ohm--- Add
401022-16401022-16 Learn More130 +/- 26 ohm20 mHAnalog28 Add
401022-20401022-20 Learn More130 +/- 26 ohm20 mHAnalog28 Add
401022-50401022-50 Learn More140 ohm max15.5 mH-40 Add
401022-60401022-60 Learn More130 +/- 26 ohm16 mHAnalog- Add
Placeholder image401022-80 Learn More150 +/- 30 ohm-Analog28 Add
401022-90401022-90 Learn More115 +/- 11.5 ohm20 mHAnalog28 Add
401023-00401023-00 Learn More650 +/- 100 ohm--- Add
Placeholder image401023-10 Learn More125 +/- 25 ohm7.5 mHAnalog- Add
Placeholder image401026-40 Learn More180 +/- 36 ohm60 mHAnalog1.5 mm Add
Placeholder image401027-40 Learn More180 +/- 36 ohm60 mHAnalog18 Add
Placeholder image401028-90 Learn More2000 ohm700 mHAnalog18 Add
Placeholder image401031-10 Learn More180 +/- 36 ohm60 mHAnalog18 Add
Placeholder image401031-20 Learn More180 +/- 36 ohm60 mHAnalog18 Add
Placeholder image401032-90 Learn More1000 +/- 200 ohm450 mHAnalog18 Add
Placeholder image401033-60 Learn More144 - 198 ohm85 mHAnalog18 Add
Placeholder image401039-00 Learn More180 +/- 36 ohm60 mHAnalog18 Add
Placeholder image401039-10 Learn More180 +/- 36 ohm60 mHAnalog18 Add
Placeholder image401039-50 Learn More180 +/- 36 ohm60 mHAnalog18 Add
Placeholder image401044-00 Learn More800 +/- 36 ohm-Analog24 Add
Placeholder image401060-10 Learn More250 ohm100 mHAnalog2 Add
Placeholder image401060-50 Learn More250 ohm100 mHAnalog2 Add
Placeholder image401060-70 Learn More180 ohm100 mHAnalog2 Add
Placeholder image401065-00 Learn More180 +/- 20% ohm60 mHAnalog2 Add
Placeholder image401065-10 Learn More180 +/- 20% ohm60 mHAnalog2 Add
Placeholder image401070-00 Learn More180 +/- 20% ohm60 mHAnalog18 Add
Placeholder image401071-10 Learn More---- Add
Placeholder image401071-30 Learn More1200 ohm450 mHAnalog18 Add
Placeholder image401071-70 Learn More1200 ohm330 mHAnalog18 Add
Placeholder image401072-10 Learn More---- Add
Placeholder image401072-30 Learn More180 +/- 20% ohm60 mHAnalog18 Add
Placeholder image401073-40 Learn More40 to 85 ohm125 mHAnalog18 Add
Placeholder image401074-00 Learn More40 to 85 ohm25 mHAnalog18 Add
Placeholder image401074-80 Learn More2000 +/- 10% ohm450 mHAnalog18 Add
401075-00401075-00 Learn More164 +/- 20% ohm40 mHAnalog18 Add
Placeholder image401075-10 Learn More164 +/- 20% ohm40 mHAnalog18 Add
Placeholder image401075-20 Learn More164 +/- 20% ohm50 mHAnalog18 Add
Placeholder image401075-30 Learn More180 +/- .20% ohm60 mHAnalog18 Add
Placeholder image401075-40 Learn More180 +/- .20% ohm60 mHAnalog18 Add
Placeholder image401075-50 Learn More180 +/- .20% ohm60 mHAnalog18 Add
Placeholder image401082-20 Learn More1000 +/- 20% ohm370 mHAnalog2 Add
401090-00401090-00 Learn More450 +/- 20% ohm210 +/- 20% mHAnalog16 Add
401090-50401090-50 Learn More450 +/- 20% ohm100 mHAnalog16 Add
401092-10401092-10 Learn More740 +/- 20% ohm-Analog- Add
Placeholder image401093-50 Learn More40 to 85 ohm25 mHAnalog2 Add
Placeholder image401095-10 Learn More650 +/- 25% ohm150 mHAnalog1 Add
Placeholder image401096-00 Learn More2280 +/- 5% ohm13.7 mHAnalog20 Add
Placeholder image401097-10 Learn More164 +/- 20% ohm40 mHAnalog16 Add
Placeholder image401098-00 Learn More450 +/- 20% ohm100 mHAnalog16 Add
Placeholder image402003-60 Learn More---- Add
Placeholder image402008-10 Learn More---- Add
Placeholder image402010-00 Learn More---- Add
Placeholder image402011-20 Learn More--Digital18 Add
Placeholder image402011-60 Learn More--Digital18 Add
Placeholder image403001-60 Learn More500 ohm87 mHAnalog18 Add
Placeholder image403001-70 Learn More500 ohm87 mHAnalog18 Add
Placeholder image403002-70 Learn More180 +/- 20% ohm40 mHAnalog16 Add
Placeholder image403006-00 Learn More500 +/- 20% ohm87 mHAnalog2 Add
404001-00404001-00 Learn More---- Add
413011-00413011-00 Learn More--Digital20 Add
Placeholder image413011-20 Learn More--Digital20 Add
413011-40413011-40 Learn More--Digital20 Add
Placeholder imageSK11551 Learn More Add
Placeholder imageSK12106 Learn More106 +/- 10.6 ohm42 +/- 4.2 mHAnalog20 Add

Features

  • No external power supply required
  • High reliability. Long life
  • Robust 2- wire installation
  • No moving parts or contacts
  • Operating Temp -40 °C to + 185 °C
  • Wide speed rage
  • Pole piece from .040″ to 311″
  • Spade, conical, round, or blind pole pieces available
  • Customized versions available
  • Adapts to various configurations

Key Features of VR Sensors

Variable Reluctance (VR) sensors do not require an external supply. Instead, their construction includes two leads: power and ground. These leads connect to an external circuit to deliver the output voltage generated during the sensing process. The power lead channels the signal output, while the ground lead ensures circuit stability and prevents electrical interference.

VR sensors come with several advantages. For instance, their robust design allows operation under extreme environmental conditions, such as high temperatures, intense vibrations, or corrosive atmospheres. This durability aligns with ATEX compliance standards, which certify equipment for use in potentially explosive environments. As a result, VR ATEX-certified explosion-proof sensors excel in applications like oil refineries and chemical plants.

Sizes Available
Tubular .150″ to .500″ inch diameter
UNF Thread 1/4-28 to 3/4-16 inch
Metric Thread M12X1.25 TO M22X1.5

Functions and Applications for MSC’s Variable Reluctance Sensors

Variable reluctance sensors have a variety of functions and applications, as seen below :

SENSOR TYPE
Active Digital Output Variable Reluctance Speed Sensor with Digital Output
Passive Analog Output Variable Reluctance Speed Sensor
  Variable Reluctance Speed Sensor W/ Complimentary Outputs

Questions?

contact our team
INDUSTRY APPLICATIONS
Aviation/ Aerospace Brake Controls, Jet Engines, Fuel Pump Monitor, APU, Turbochargers, Steering Mirror Actuator, Valve Actuator
Biotech Centrifuge Speed Measurement, Proximity Switches
Exercise Equipment Speed Control, Distance Measurement
Military Bradley Fighting Machine, F8 Crusader, AAV7 Amphibious Assault Vehicle, Unmanned Aerial Vehicles
Railroad Engine Controls, Turbines, Valve Position

Maintenance and Scalability Considerations

Those considering VR sensors should also note their ease of maintenance and scalability. Our VR sensors feature modular designs, allowing quick replacement of individual components without disrupting the entire system. Additionally, their compact size makes them suitable for retrofitting into existing setups, offering a cost-effective upgrade option with long-term value.

Advantages of Working With Us

Here at Magnetic Sensors, we work to deliver products tailored to each customer. Our operations enable quick adaptations to customer needs, from engineering replacements for outdated sensors to collaborating with certified labs for compliance testing. If you are looking for a VR sensor, request a quote today so we can help you with your search.

View Other Sensors & Custom Coils

Proximity Sensors Proximity Sensors
Speed & Direction Sensors Speed & Direction Sensors
Temperature Sensors Temperature Sensors
Custom Sensors Custom Sensors
Bobbin-Wound Bobbin-Wound
Freestanding Freestanding
Magnetic Pickup/ Speed Sensor Magnetic Pickup/ Speed Sensor
Solenoid Solenoid
Have Questions?

Contact Us

Give us a call or send us a quick message and our team will be in touch with you shortly.

(714)-630-8380
