| Product Attributes | |
|---|---|
| Manufacturer | MSC |

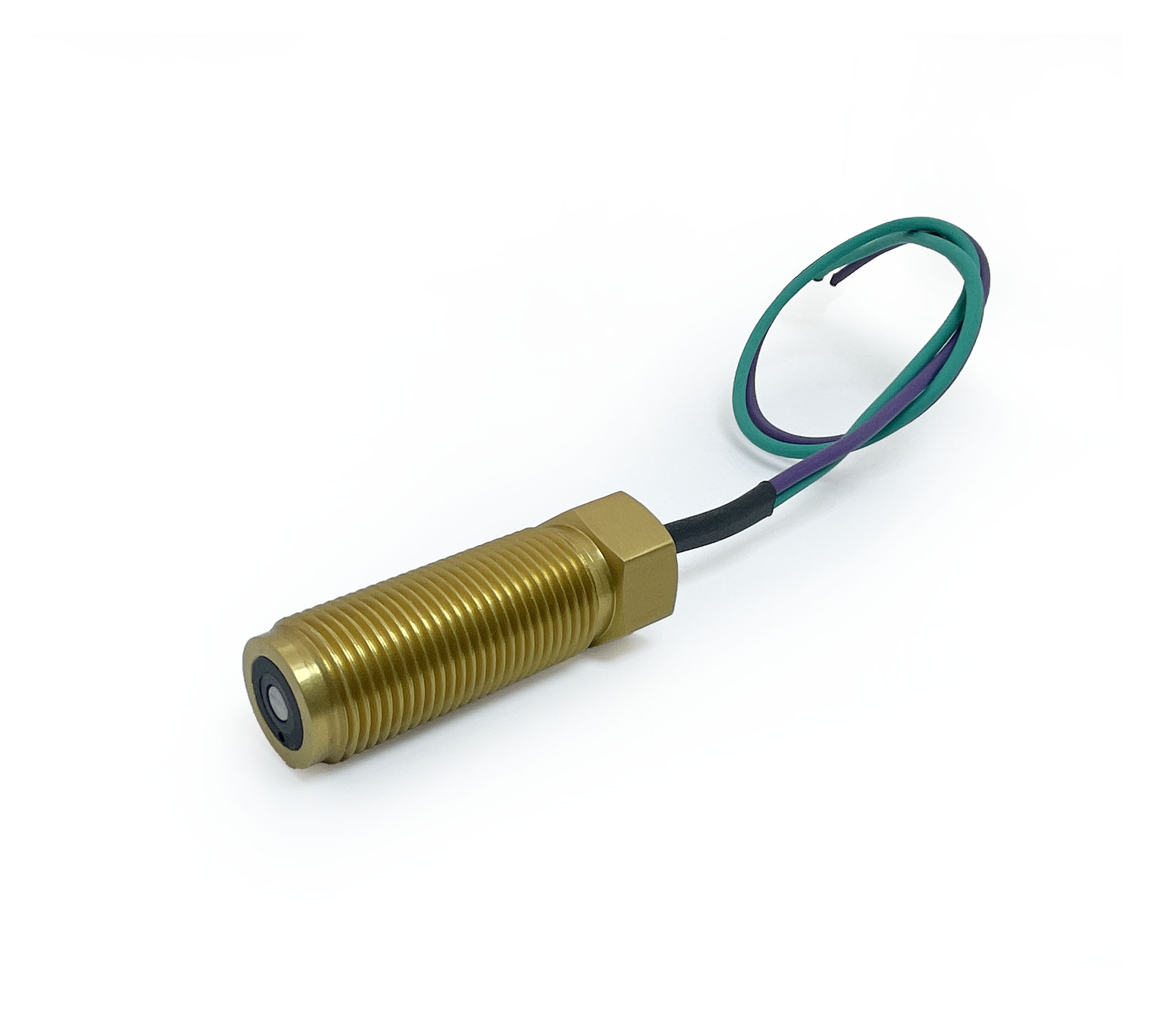

| Description | VR SPEED SENSOR |
| RoHS | Compliant |
| REACH | Compliant |
| Resistance | 80 +/- 16 ohm |
| Inductance | 30 +/- 6 mH |
| Minimum Output Voltage P-P | .5 V |
| Nominal air gap | 50 mil |
| Minimum operating temperature | -30 C |
| Maximum operating temperature | +110 C |
| Output type | Analog |
| Thread per inch | 16 |
| Case diameter | 3/4 in |
| Face type | Open |
| Thread length | 1.87 in |
| Overall length | 2.30 in |
| Cable length | 15.0 in |
| Case material | Mild Steel, Zinc Plated |
| Wire | 18 AWG |
| ATEX Certification | No |
| Minimum input supply voltage | - |
| Maximum input supply voltage | - |
| Supply current | - |
| Maximum output current | - |
